Purpose
Before upgrading to Smart Strength Series 3 (model numbers starting with ST3), check whether your current floor plan still provides enough space for the new machines and whether your existing cable management setup is still suitable.
For more information on Smart Strength machines, refer to the Owner's Manuals.
Details
Refer to Hmotnost a rozměry strojů for the Smart Strength Vision and Series 3 machine dimensions.
The clearance under the base changed for the following Series 3 machines; cabling may need to be adjusted.

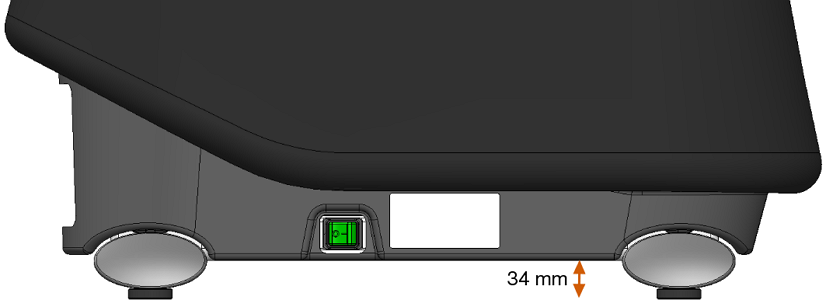

Vision (M1, M2, M3, M4, M5, M6, M7, M8, M15, M16, M17, M18, M19, M20)
(Plastová základna)

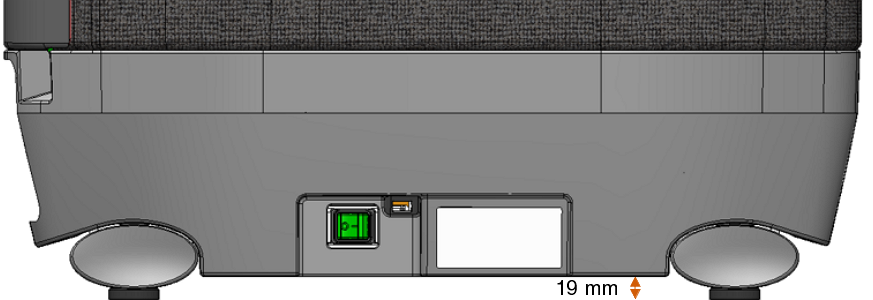

Series 3 (M1, M2, M3, M4, M5, M6, M7, M15, M17, M18, M19, M20)

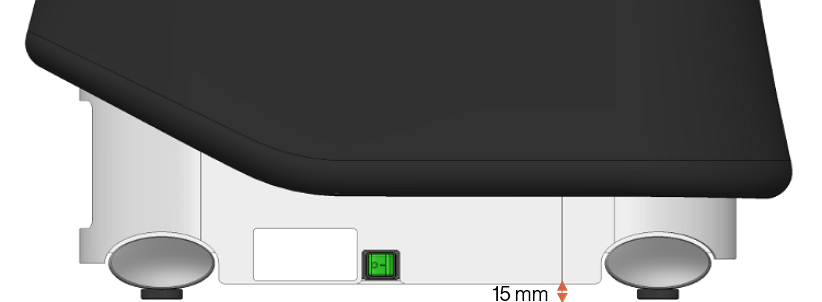

Vision (M1, M2, M3, M4, M5, M6, M7, M8, M15, M16, M17, M18, M19, M20)
(Kovová základna)
M1 Leg Extension
M2 Abdominal Crunch
M3 Back Extension
M4 Leg Curl
M5 Chest Press
M6 Seated Row
M7 Lat Pull
M15 Bicep Curl
M17 Shoulder Press
M18 Triceps Press
M19 Hip Thrust
M20 Squat
The clearance is the same for the other Smart Strength Series 3 machines.

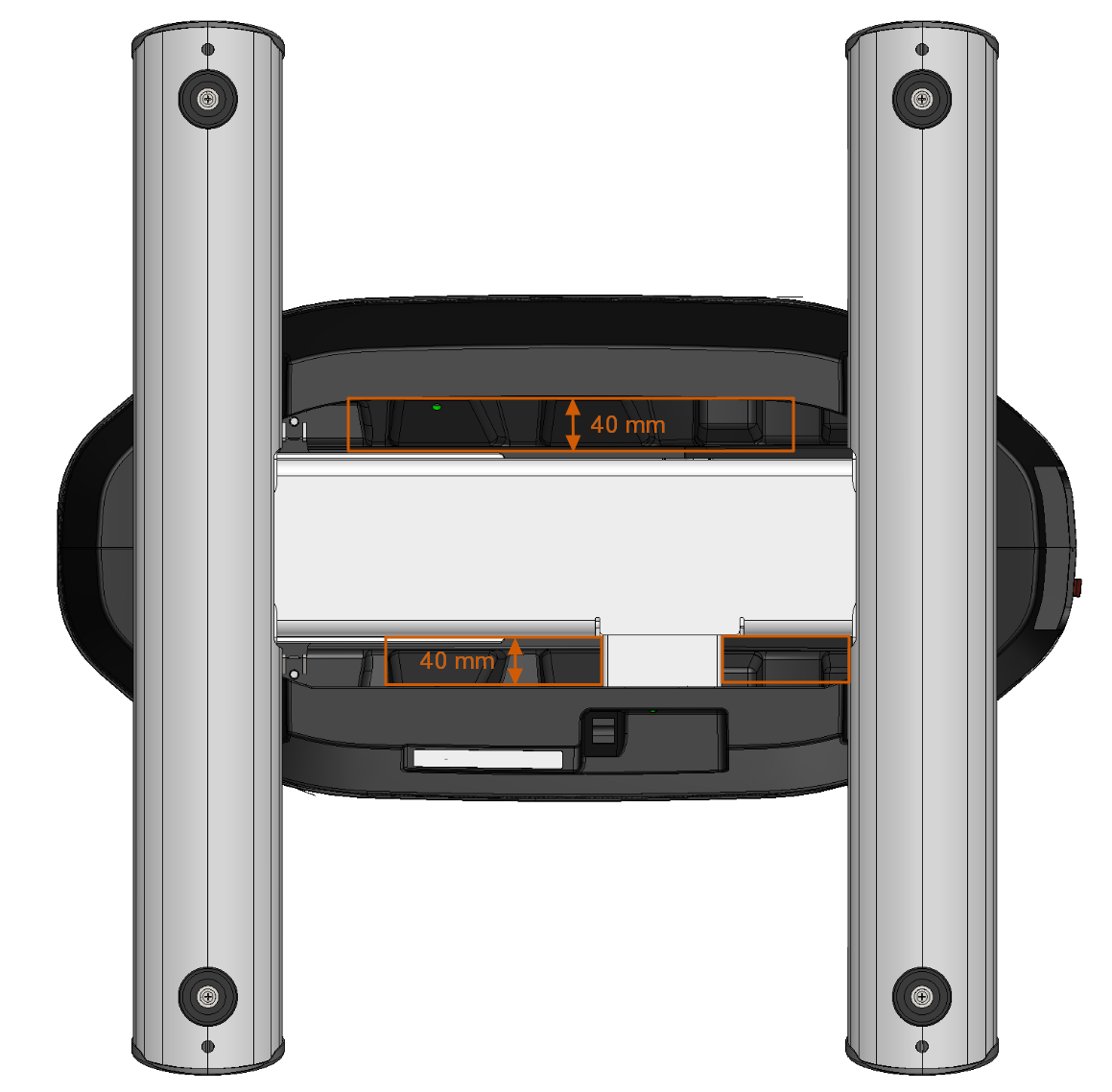

The underside of Series 3 machines has approximately 40 mm of open space on each side (M1, M2, M3, M4, M5, M6, M7, M15, M17, M18, M19, M20). Cables can be routed through any of these openings.
 |
Series 3 (M1, M2, M3, M4, M5, M6, M7, M15, M17, M18, M19, M20)
Solution
Before installation, review your room plan and cable management setup with your EGYM representative or site planning expert.
