Smart Strength Series 3 Owner's Manual
Owner's manual information
050-00045-EN
Original instructions
© 2026 EGYM SE, Munich
Safety Information & Hazards
Read the manual before using EGYM Smart Strength machines. Keep this manual for the entire service life of the machine.
Caution
Before startup, check that the machine is not damaged. The level of safety of an EGYM machine can only be maintained if it is checked regularly for damage and wear as per the regulations and standards applicable for your region.
Medical hazards
Persons with reduced physical, sensory, or mental capabilities are only permitted to use EGYM machines with medical clearance and under supervision.
Users should not train beyond their fitness level. Health-related injuries could result from incorrect or excessive use of exercise equipment.
EGYM machines must be correctly adjusted for the user before use. Take care not to overstrain joints while exercising.
EGYM does not recommend using EGYM machines with a pacemaker or an ICD device, due to the risk of electromagnetic interference.
Crush and entanglement hazards
Users must wear tight-fitting exercise clothing. Empty your pockets, and remove dangling jewelry and belts.
Users should wear dry, slip-resistant shoes; shoes with thick soles, spikes, or heels are not permitted.
Stay clear of moving parts, except when exercising on the machine as instructed.
Ensure feet are not under the foot plate while it is in motion.
Ensure the field of movement of the machine is not obstructed.
Electrical hazards
Keep food and beverages away from the EGYM machines. If liquid enters a machine, unplug the power plug immediately and contact support.
Keep heat sources and sharp objects away from EGYM machines and power cables.
Keep air openings and the textile covering free of any obstructions.
Each machine must be connected directly to a separate power outlet. Extension cables or multi-distribution sockets are not permitted.
Ensure that the power cord is not knotted or twisted, cannot be stood on or tripped over, and is not trapped under any objects.
Use grounded cables and sockets.
Ensure that the sum of rated currents does not exceed the nominal rating of your OCPD (overcurrent protection device).
Intended Use
The intended use of EGYM Smart Strength machines is to exercise using the guided movement defined for each machine, in order to train the associated muscle group.
In accordance with EN 20957-1, Smart Strength machines are classified as Class S (Studio), intended for professional and/or commercial use. For indoor use only.
Caution
Access, supervision, and control must be specifically regulated by the owner of EGYM machines. Do not allow unsupervised children close to the machines.
Misuse
Misuse or failure to follow the guided movement may result in injury.
An EGYM machine may only be used by one person at a time.
Do not lock your knees while using the M9 Leg Press; do not lock your elbows while using the M5 Chest Press.
EGYM training machines and software products are not intended for use by children*.
* The definition of a child is subject to local and national laws.
User limits
Any use outside of this range requires the approval and supervision of a qualified trainer or medical professional.
In Guest Mode, the users height must be entered manually.
Maximum weight: 150 kg (331 lbs.)
Height range: 1.50 m - 2.00 m (4' 11" - 6' 7")
M9 Leg Press height range: 1.65 m - 2.00 m (5' 5" - 6' 7")
Machine integrity and modifications
The installation of EGYM machines must be performed by a service technician authorized by EGYM.
EGYM machines must be placed on a firm, stable, and level surface with sufficient load-bearing capacity for the weight of the equipment.
Smart Strength machines may only be operated indoors in a dry location with an ambient temperature of +10°C to +40°C / +50°F to +104°F.
Do not make any changes or additions to EGYM machines.
Faulty machines must be removed from use. Do not modify or attempt to repair faulty EGYM machines yourself.
If EGYM machines are dismantled or transported by the owner, EGYM cannot guarantee that they will function properly or safely afterwards. Improper transport may damage your flooring and machines.
Do not reach into or underneath EGYM machines.
Protection of machine components
Do not place training weights or other objects on the machines.
Use the monitor only as a touchscreen. Do not use pens or other objects on the monitor.
Never insert objects into any opening of an EGYM machine.
Only use accessories approved by EGYM SE in conjunction with EGYM machines.
Do not lean on the machine or exert force on any machine parts, except during intended exercise use.

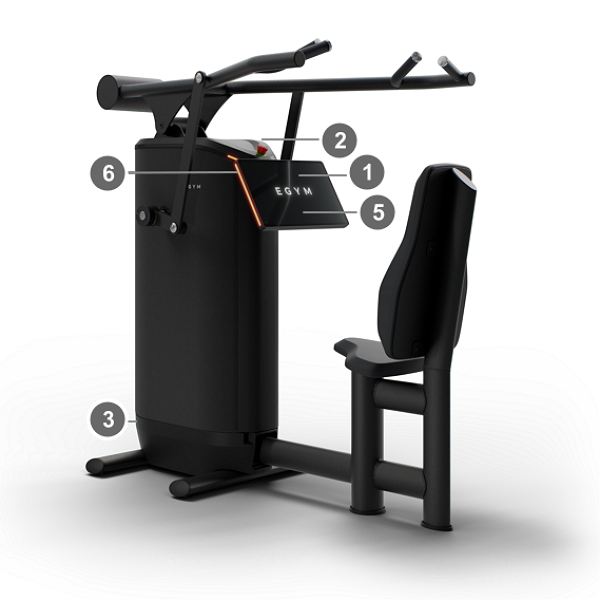

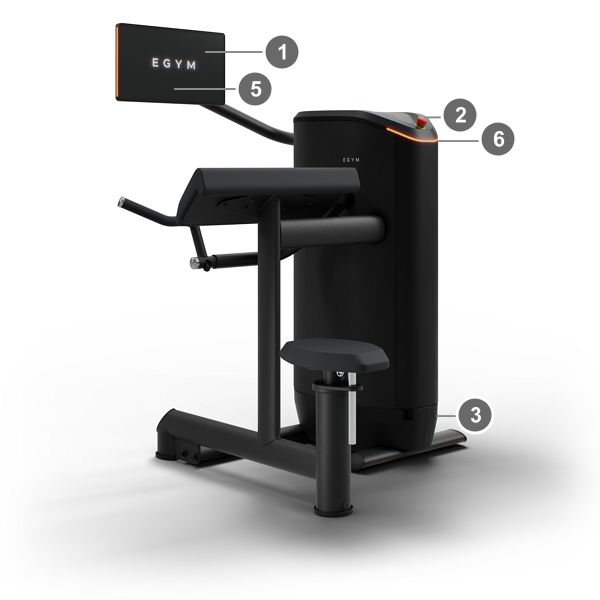

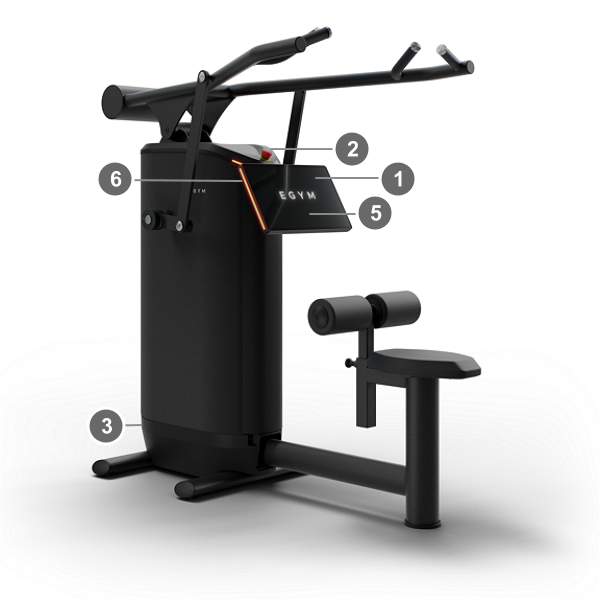

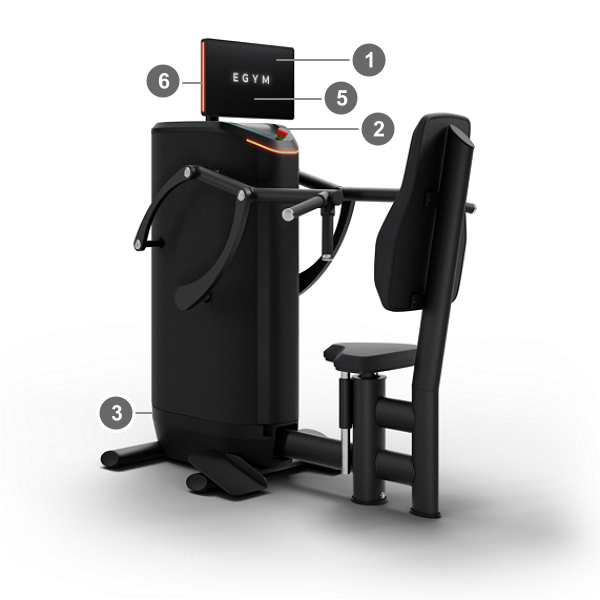

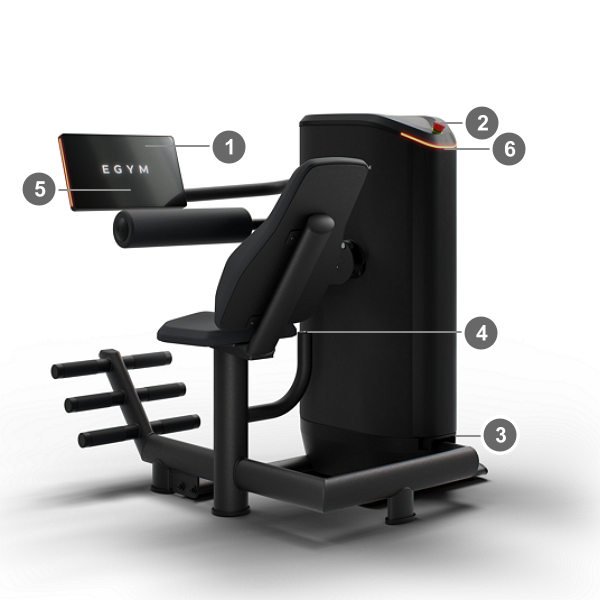

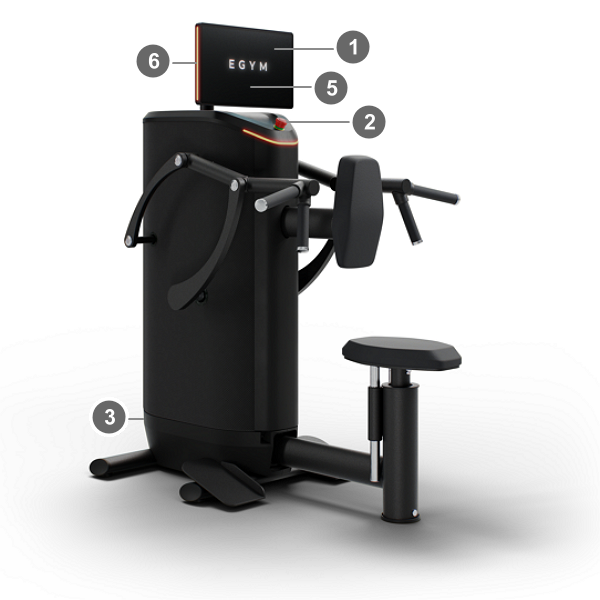

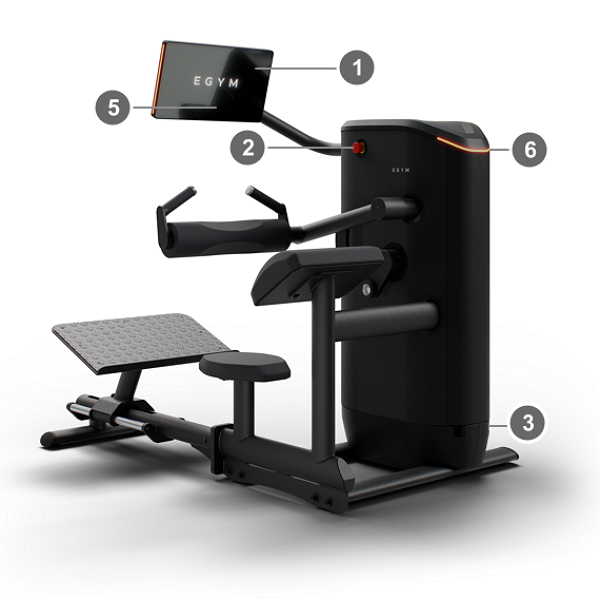

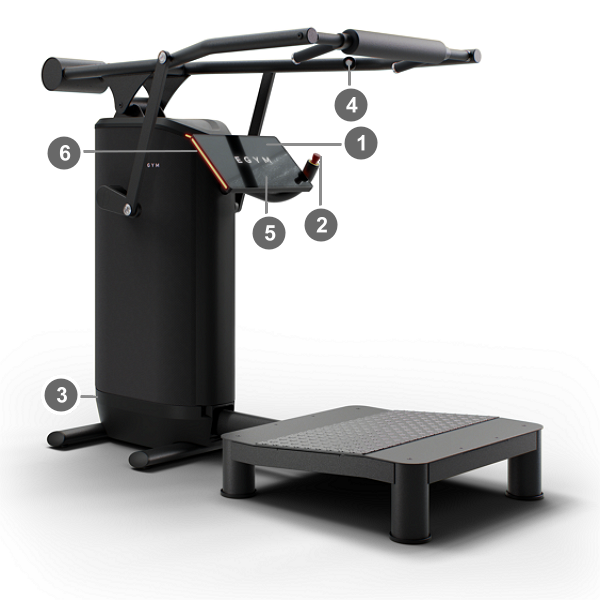

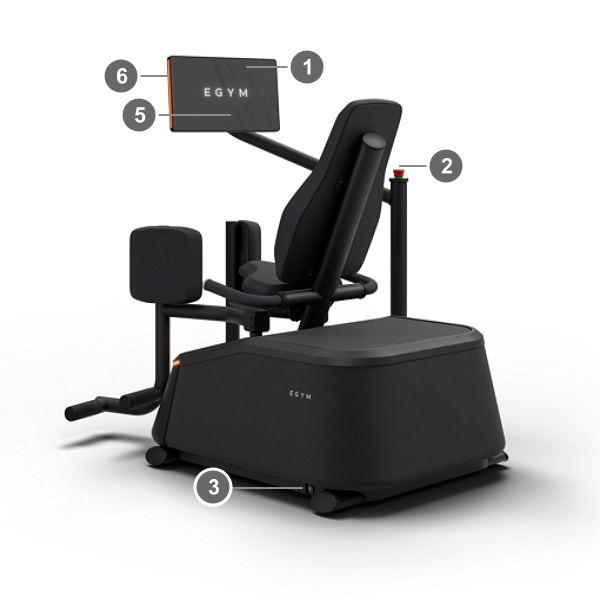

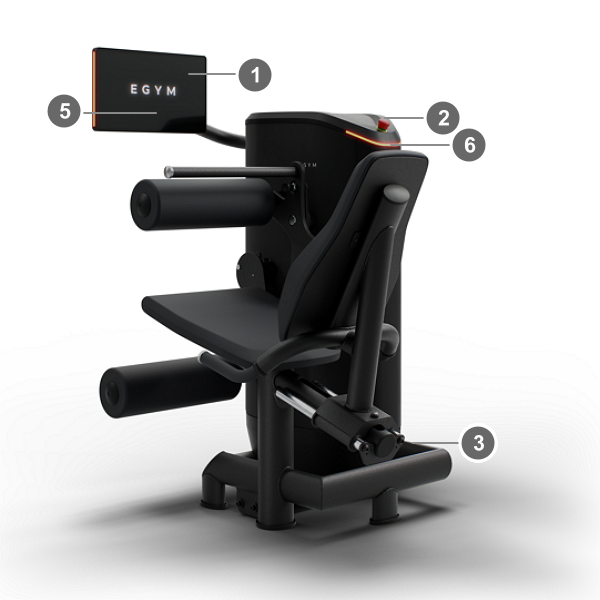

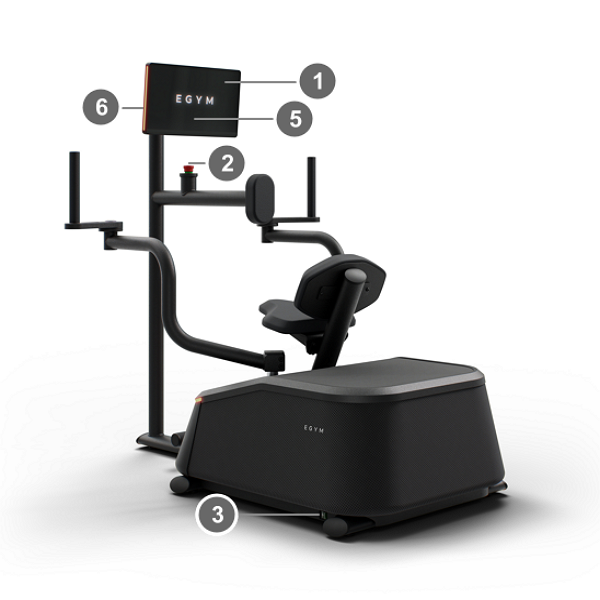

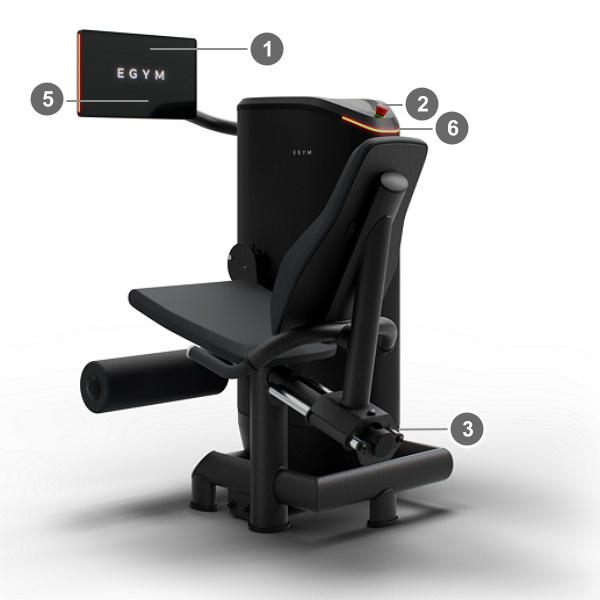

Overview of EGYM Smart Strength Series 3 machines

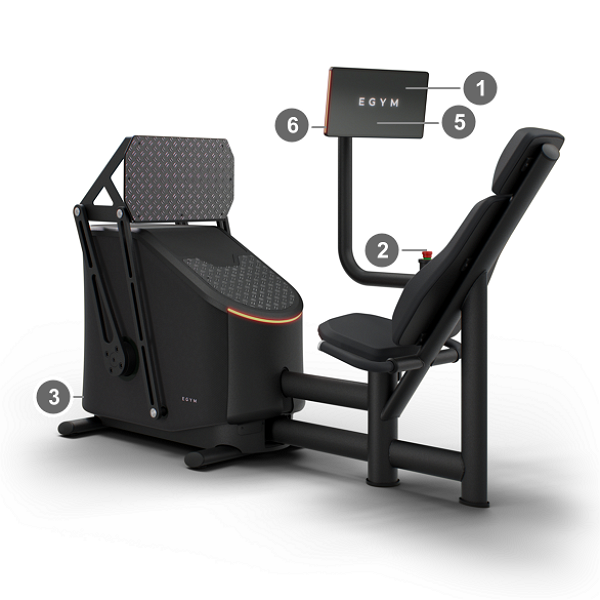

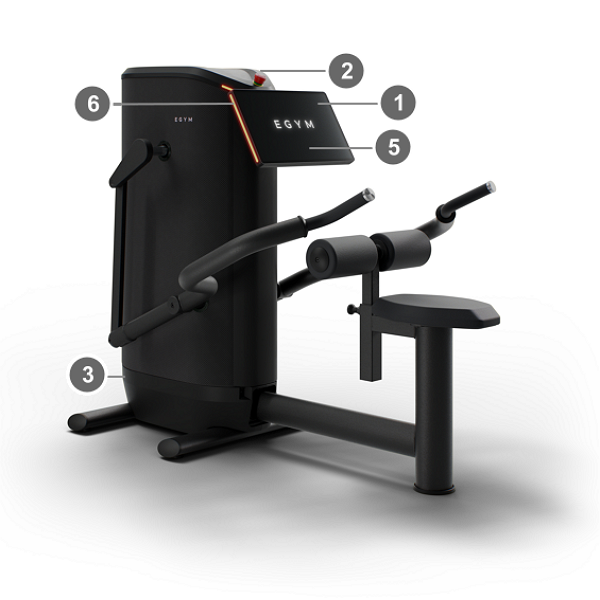

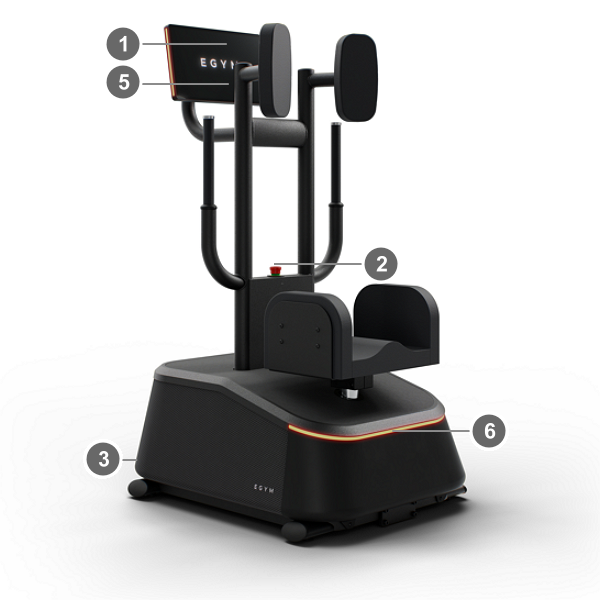

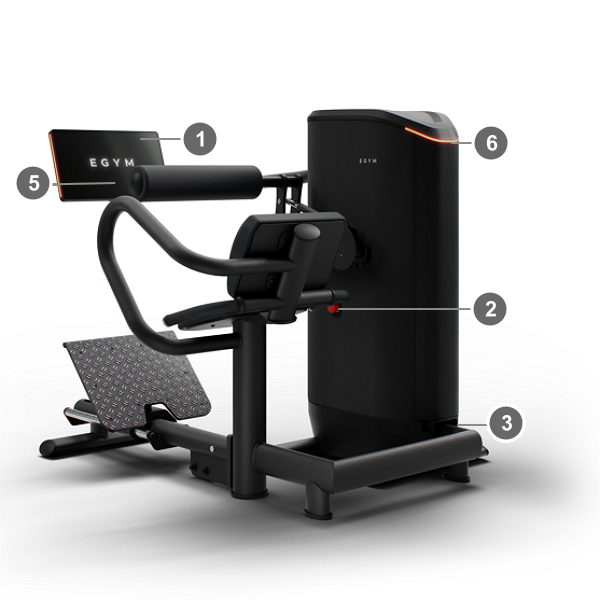

EGYM Smart Strength machines are automatically adjusted to fit a user, based on user height and weight. The machines use motor-driven resistance to set the training weight. If a member is logged in while exercising, training data is recorded and saved to their EGYM account.

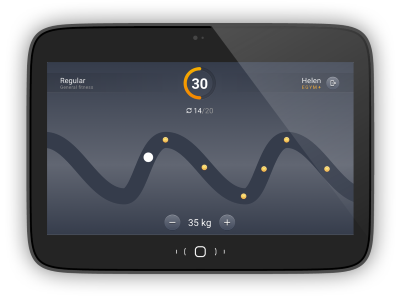

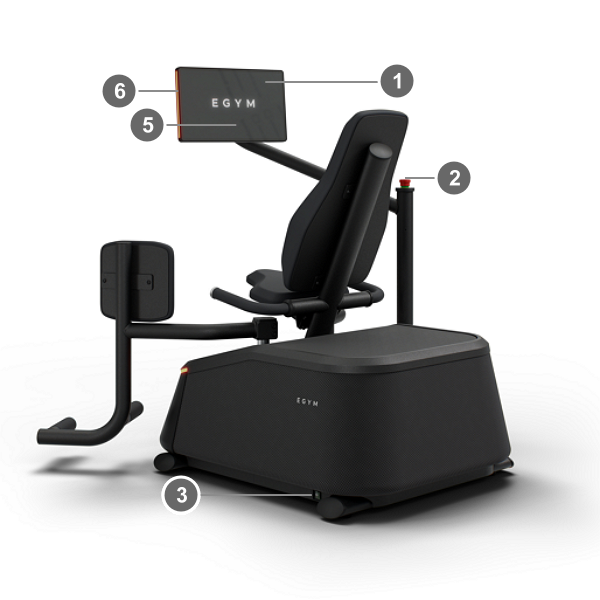

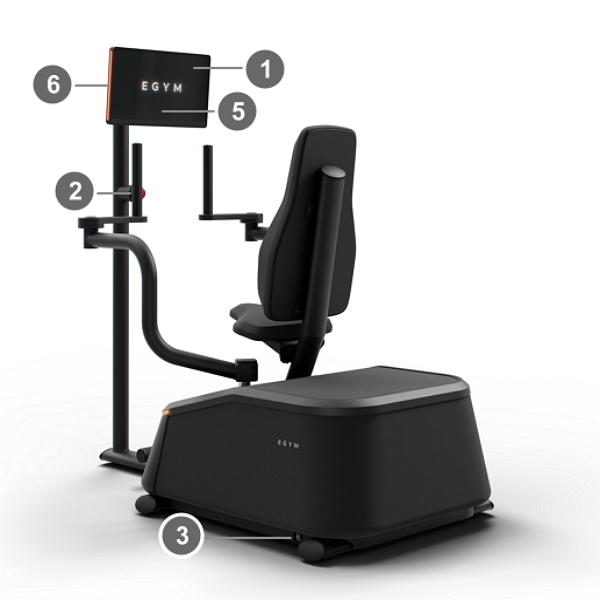

- 1 Display
Displays exercise guidance.
- 2 Emergency stop button
Press to eliminate training resistance by interrupting the power supply.
- 3 On/off switch
Located at the bottom of each machine on the frame; the exact location varies.
- 4 Easy-Stop button
Non-emergency button that eliminates training resistance on the M2 Abdominal Crunch and M20 Squat machines. On the M20, pressing the button also lifts the bar into the start position.
- 5 RFID / NFC reader
Located centrally in the lower section of the display; used for user login.
- 6 LEDs
LED strips on the machine and display that change color depending on the machine configuration.
- Radio module
EGYM machines are equip with a radio module.
Operating frequency band: 13.56 MHz
Maximum radio frequency power (EIRP): 7.5 A/m
EGYM equipment should always be started and shut down using the power switch. To completely disconnect the machine from power, you must unplug the power cable.
After an EGYM Smart Strength machine is switched on, the motors move through the entire range of motion. Keep away from moving parts, and make sure the machine's field of movement is not obstructed.
If the power supply fails, the machine will restart automatically once power is restored. Workouts that are in progress when an outage occurs are not sent to the EGYM cloud.
Caution
Do not use residual current circuit breakers (RCCB) or overcurrent protection devices (OCPD) to switch off the machines. This could damage the machines. If you would like to switch all your EGYM machine on and off at once, a panel switch must be installed.
 |
M1 Leg Extension
 |
M2 Abdominal Crunch
 |
M3 Back Extension
 |

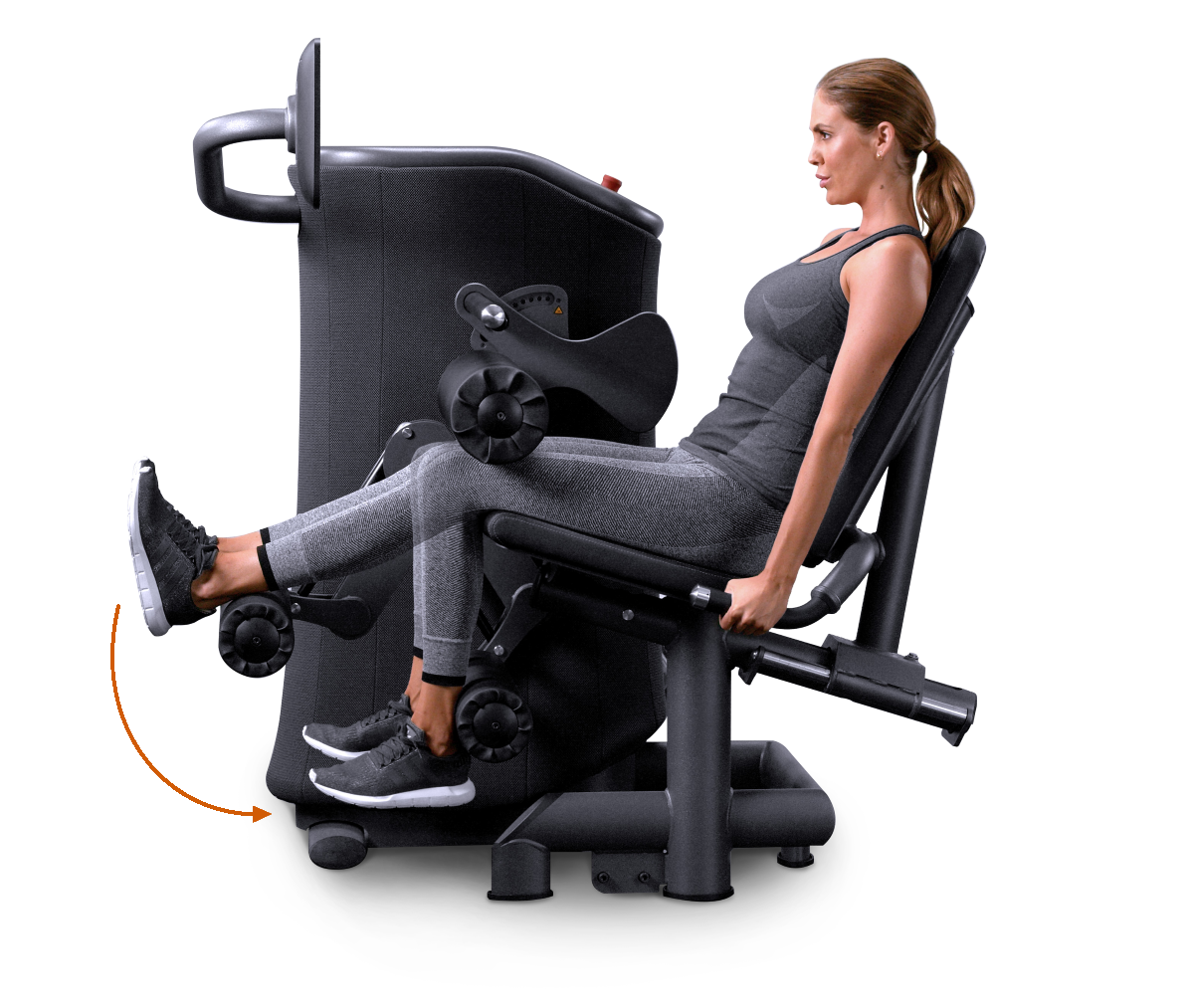

M4 Leg Curl
 |

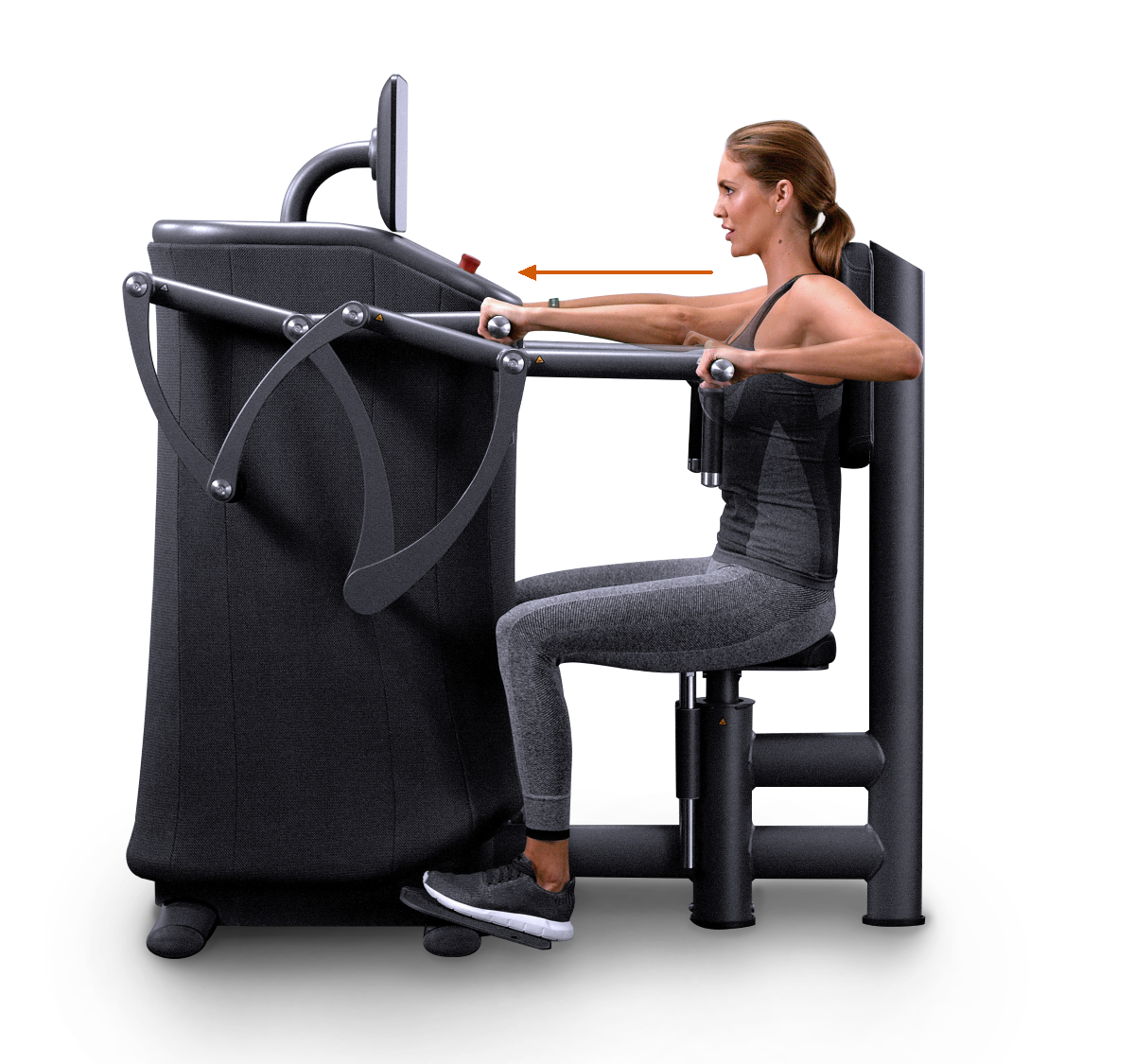

M5 Chest Press
 |

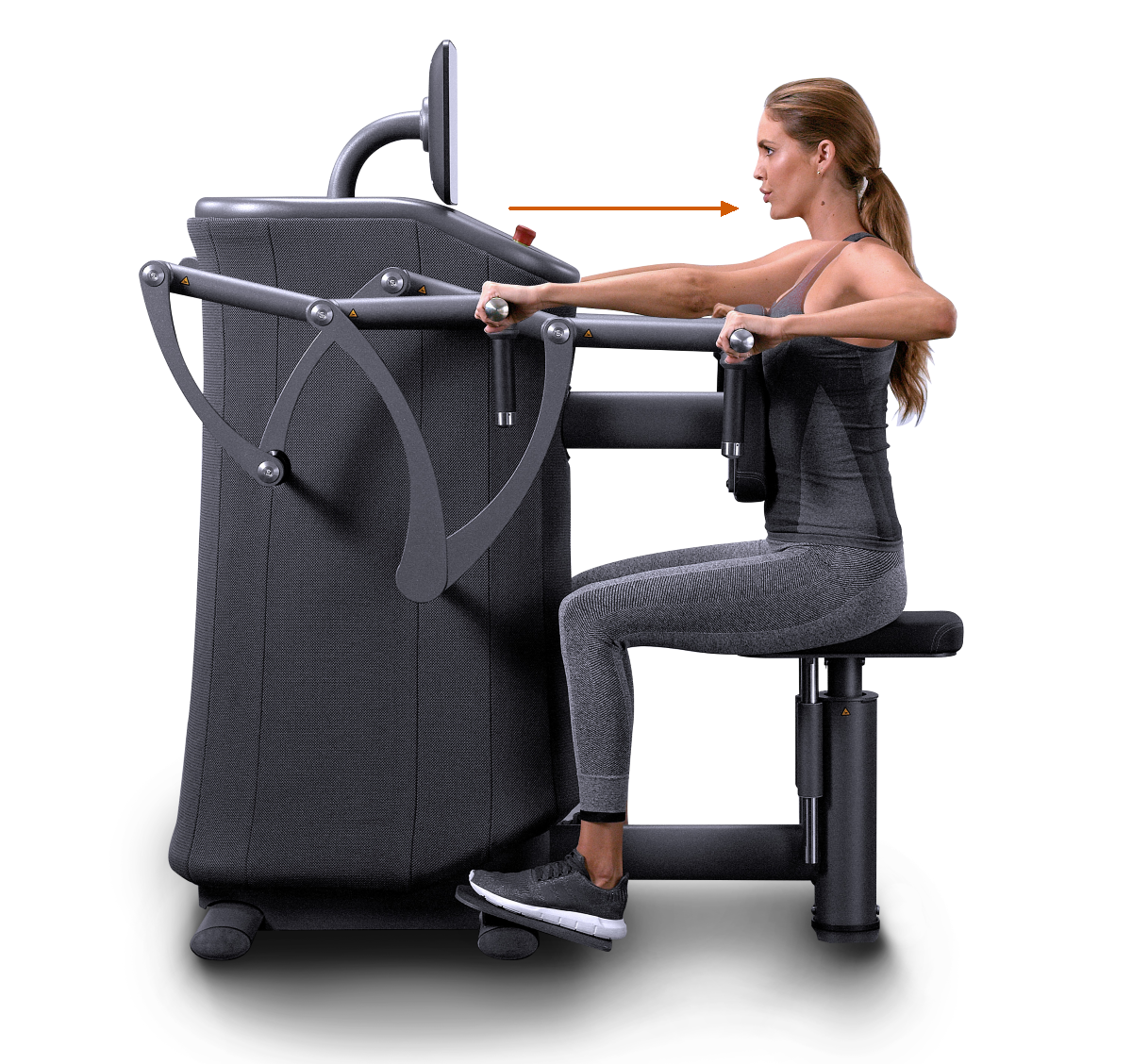

M6 Seated Row
 |

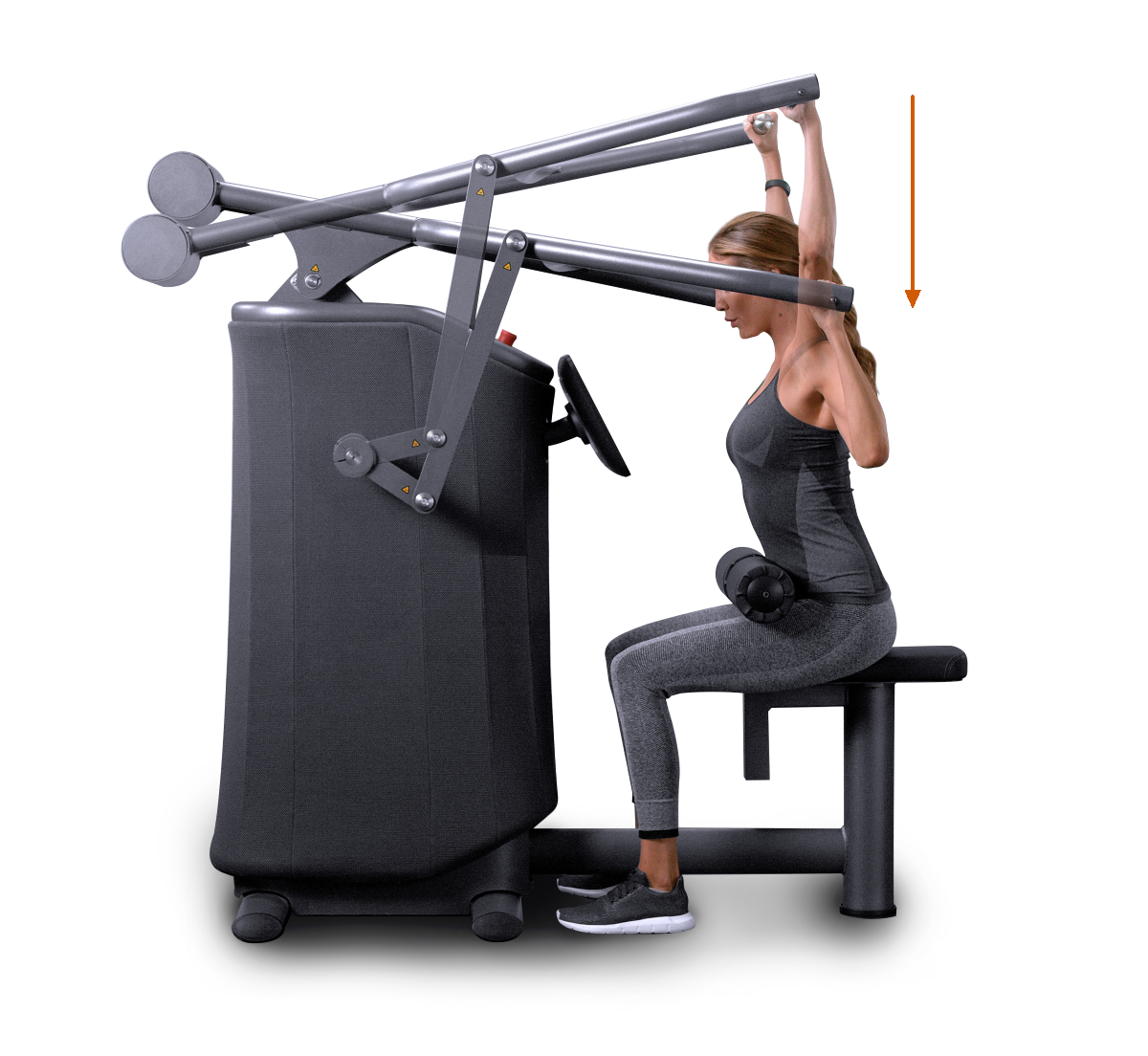

M7 Lat Pulldown
 |

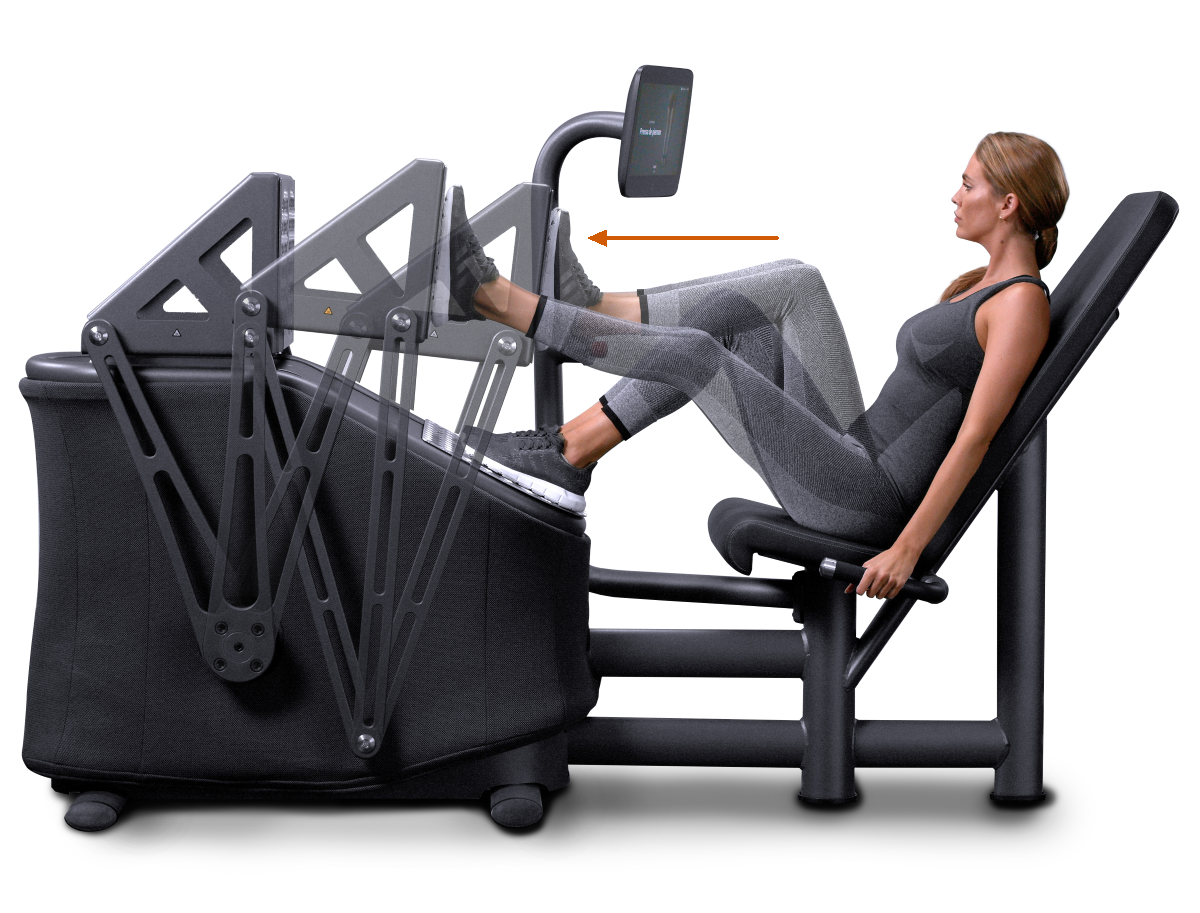

M9 Leg Press
 |

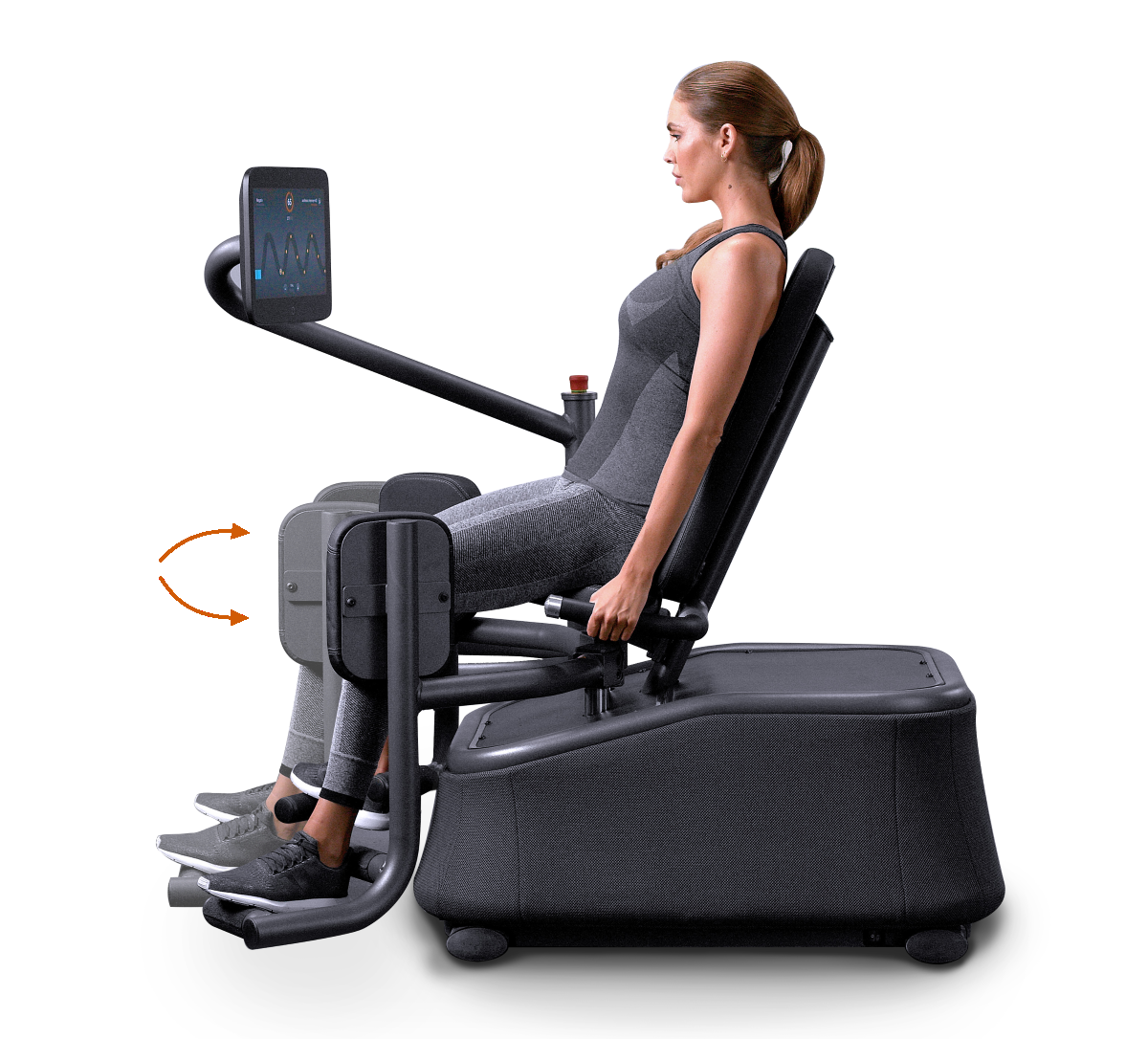

M10 Abductor
 |

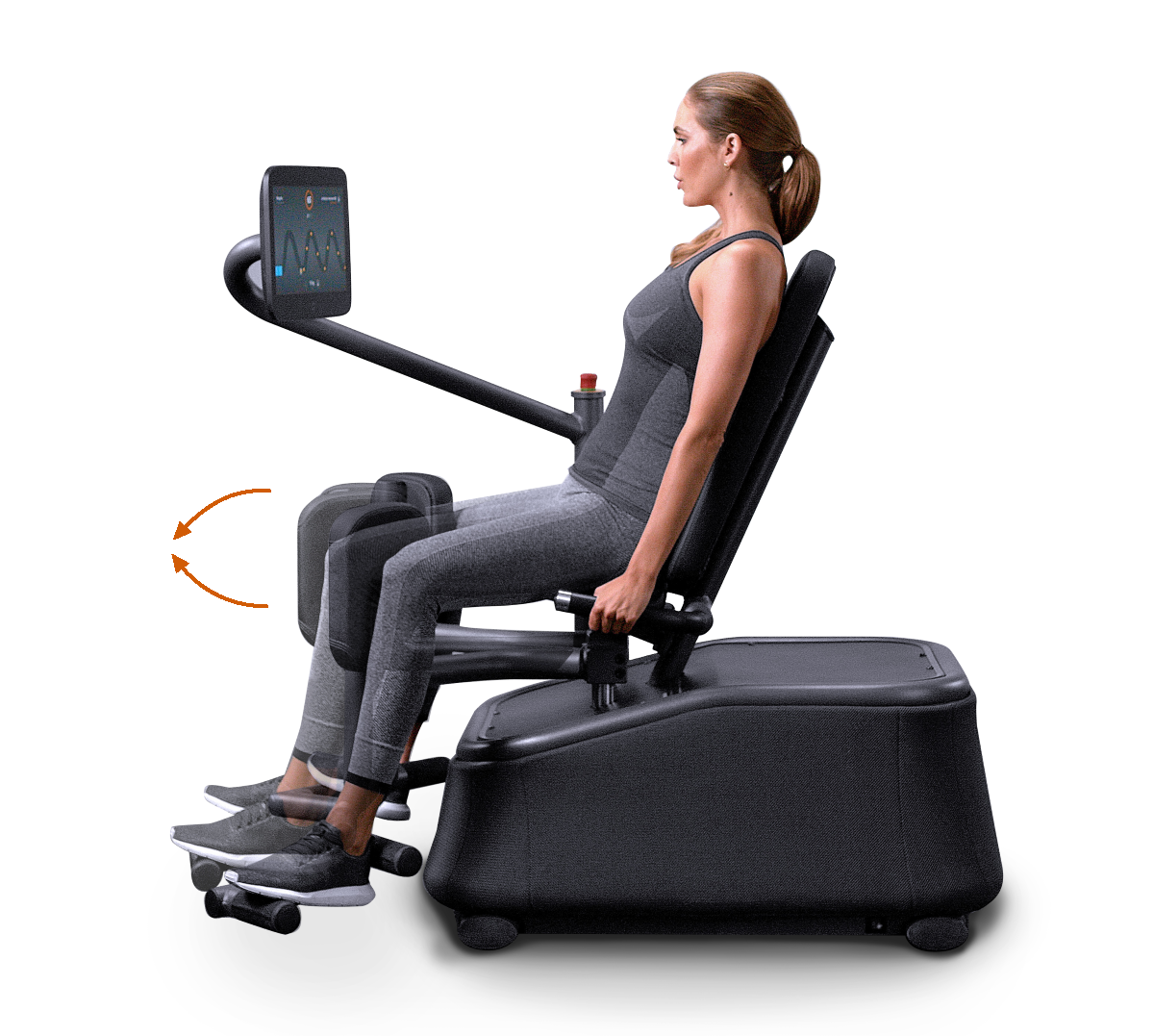

M11 Adductor
 |
M12 Rotary Torso
 |

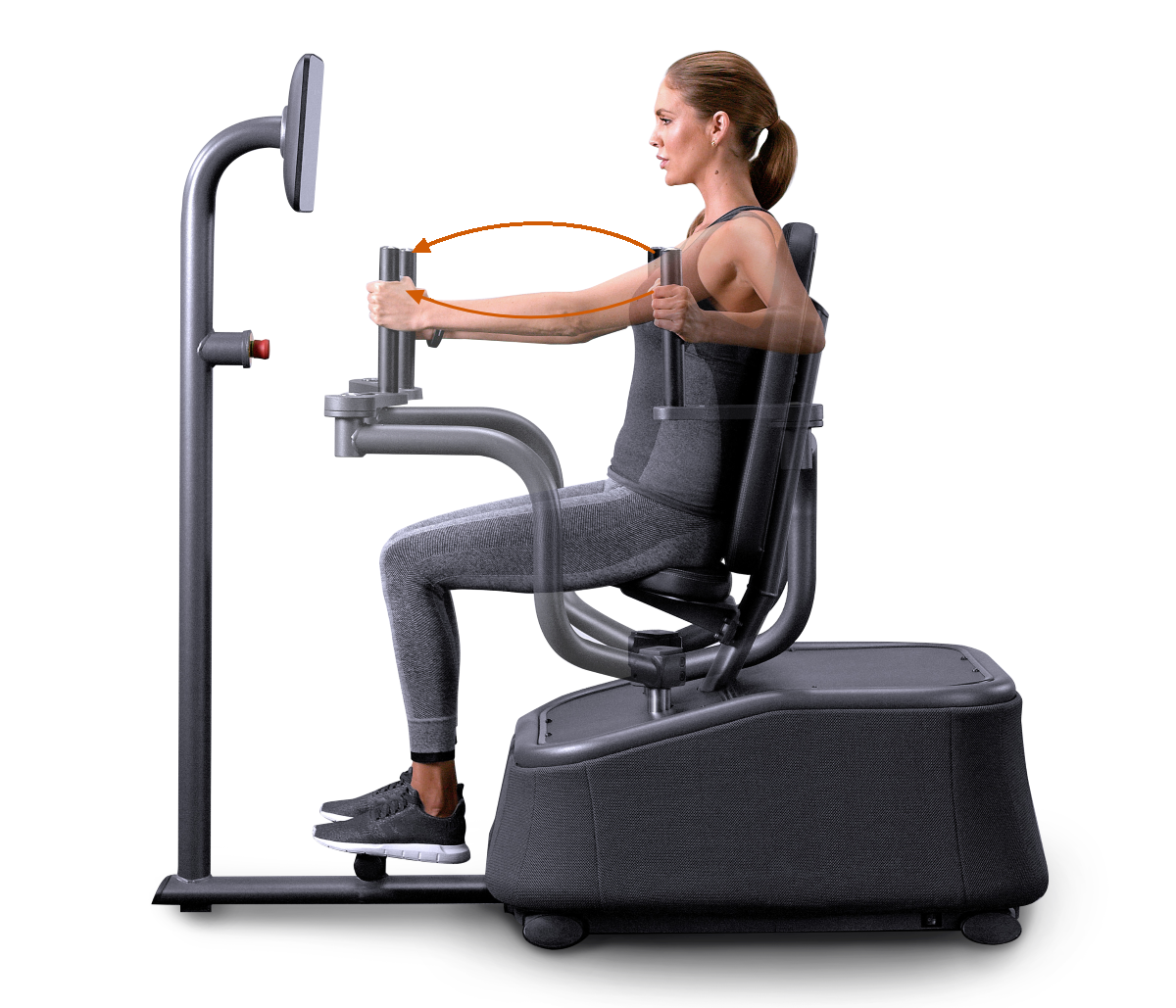

M13 Butterfly
 |
M14 Butterfly Reverse
 |
M15 Bicep Curl
 |
M17 Shoulder Press
 |

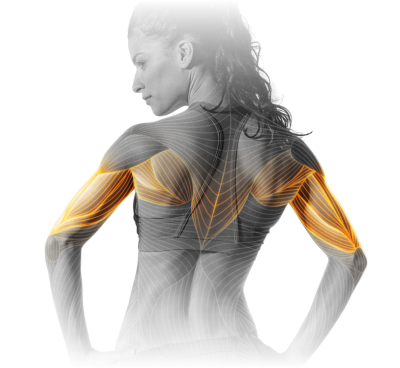

M18 Triceps
 |

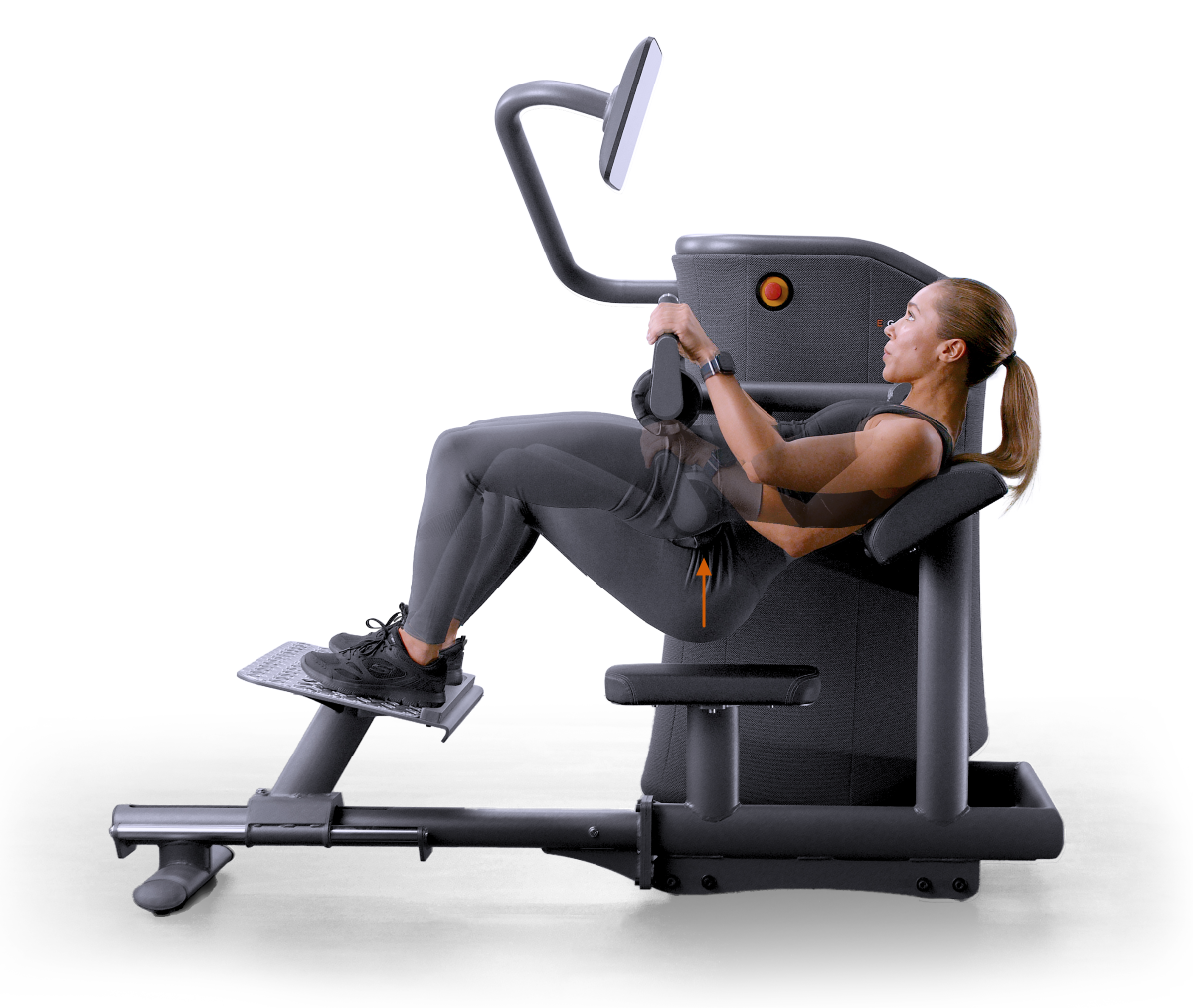

M19 Hip Thrust
|

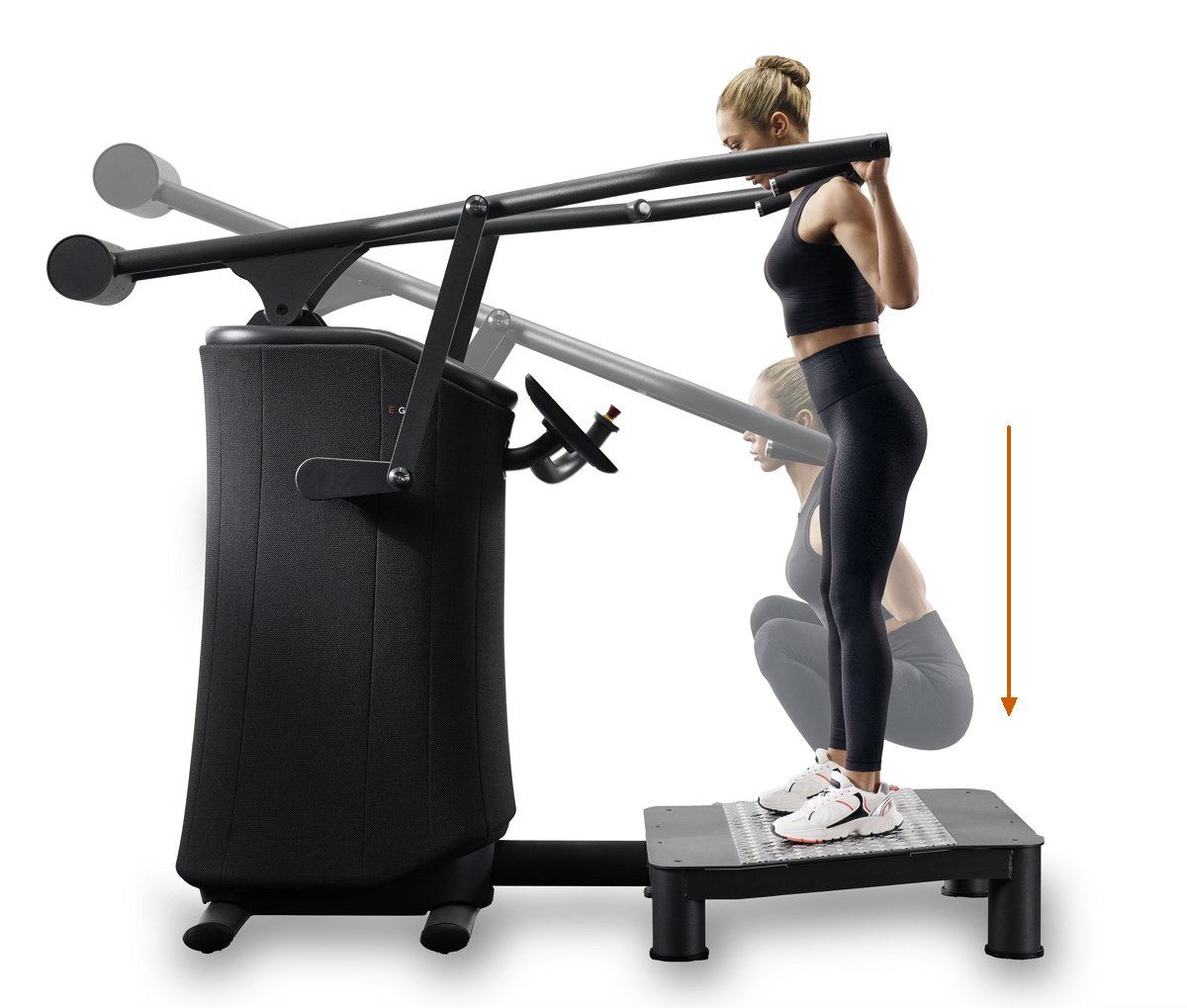

M20 Squat

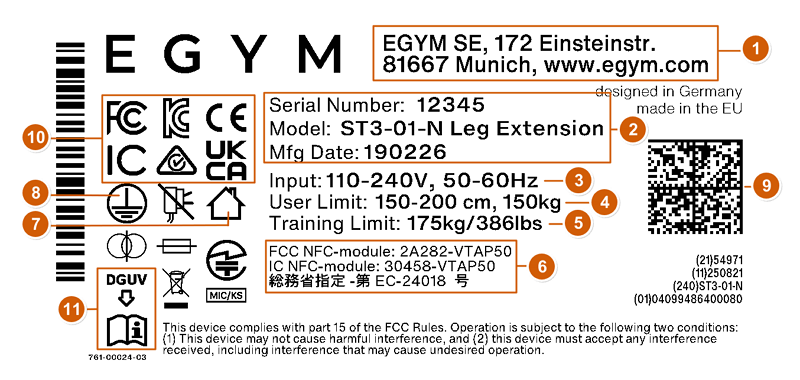

Machine type plate
The type plate can be found on the machine base. If the type plate or any label comes off, contact EGYM Support or your distributor for a replacement.
- 1 Manufacturer details
Company name, address, and website
- 2 Machine information
Serial number, model, and manufacturing date
- 3 Electrical specifications
Input frequency and voltage
- 4 User limits
User height range and maximum body weight
- 5 Training limit
Maximum training weight
- 6 RFID / Wi-Fi information
FCC and IC codes
- 7 House symbol
Indoor use only
- 8 Grounding symbol
Dedicated grounding (earth) terminal
- 9 Data matrix
Machine code (internal use only)
- 10 Product certifications
FCC, CE, IC (Canada), RCM (Australia), KC (Korea), WEEE
- 11 Book symbol
Read the manual; consult the section on recurrent testing (DGUV)
Installation
Machine integrity and modifications
The installation of EGYM machines must be performed by a service technician authorized by EGYM.
EGYM machines must be placed on a firm, stable, and level surface with sufficient load-bearing capacity for the weight of the equipment.
Smart Strength machines may only be operated indoors in a dry location with an ambient temperature of +10°C to +40°C / +50°F to +104°F.
Do not make any changes or additions to EGYM machines.
Faulty machines must be removed from use. Do not modify or attempt to repair faulty EGYM machines yourself.
If EGYM machines are dismantled or transported by the owner, EGYM cannot guarantee that they will function properly or safely afterwards. Improper transport may damage your flooring and machines.
Do not reach into or underneath EGYM machines.
Note
Contact support if:
the floor is uneven and you need custom space plates for the machine feet.
you need the machines fixed to the ground.
Detailed room planning guide
A full set of rules related to machine space requirements is available at https://knowledge.egym.com/en/smart-strength/machine-space-requirements--room-planning-.

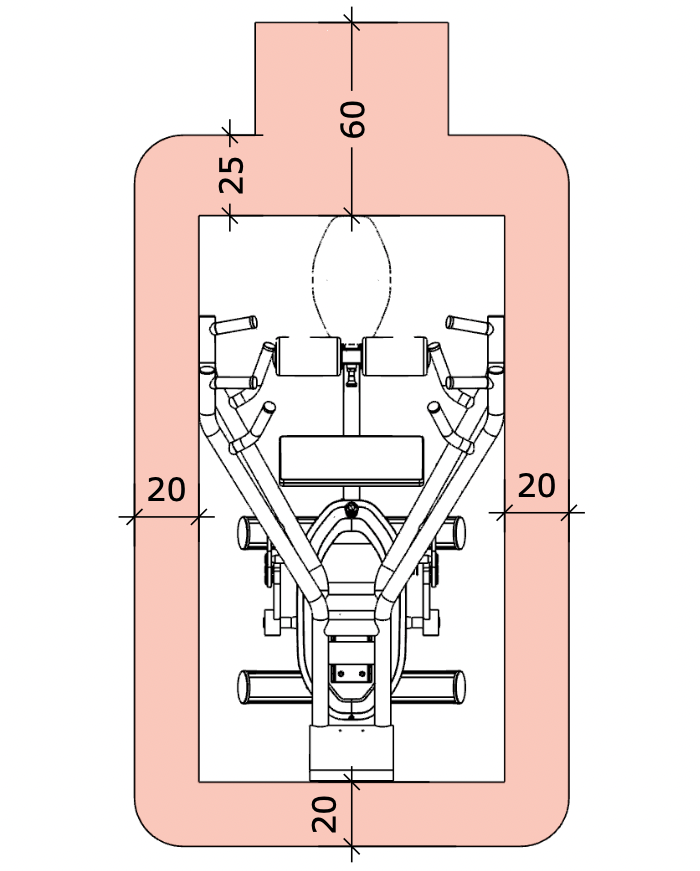

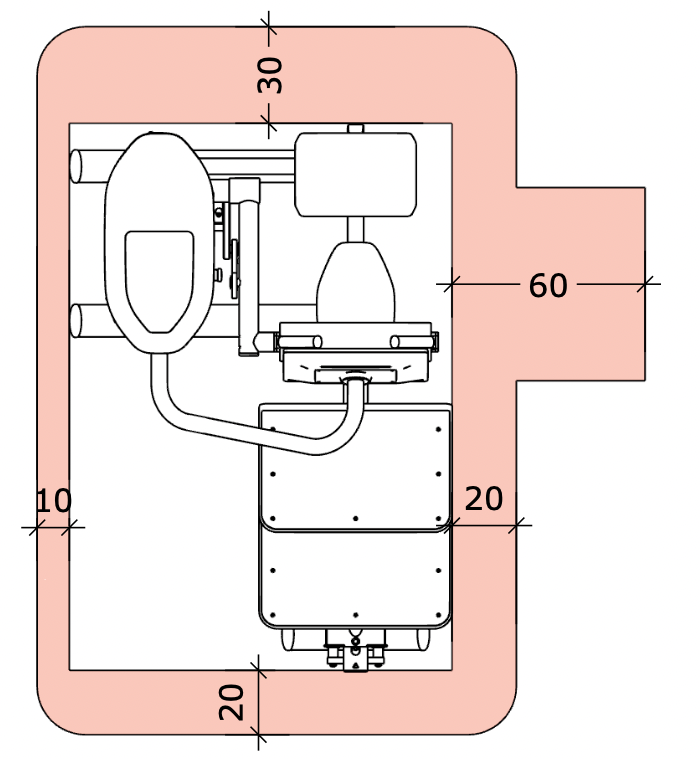

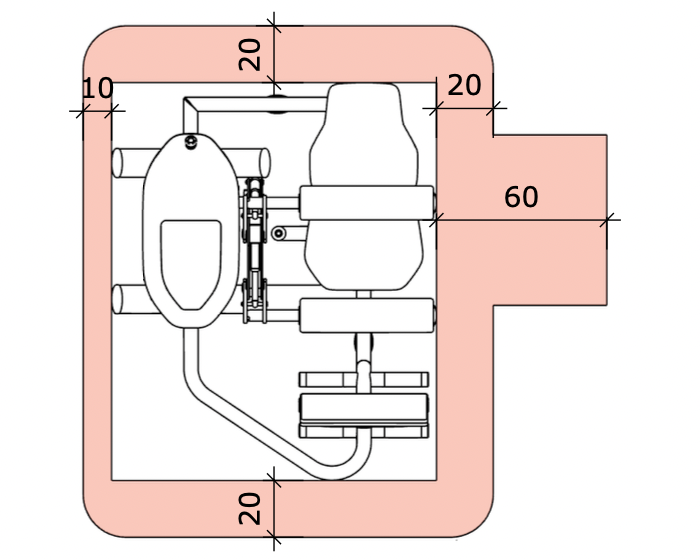

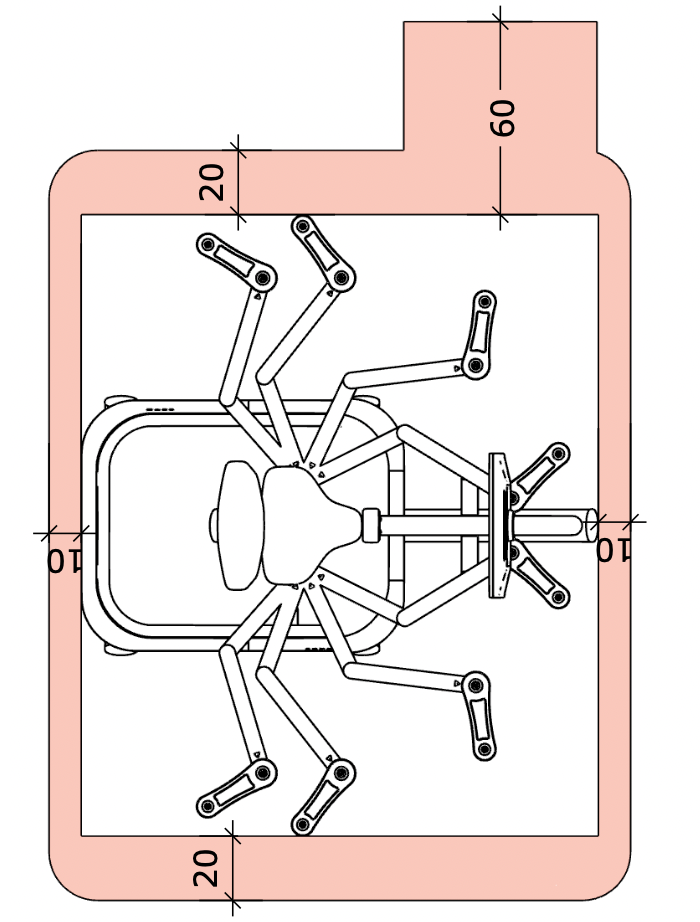

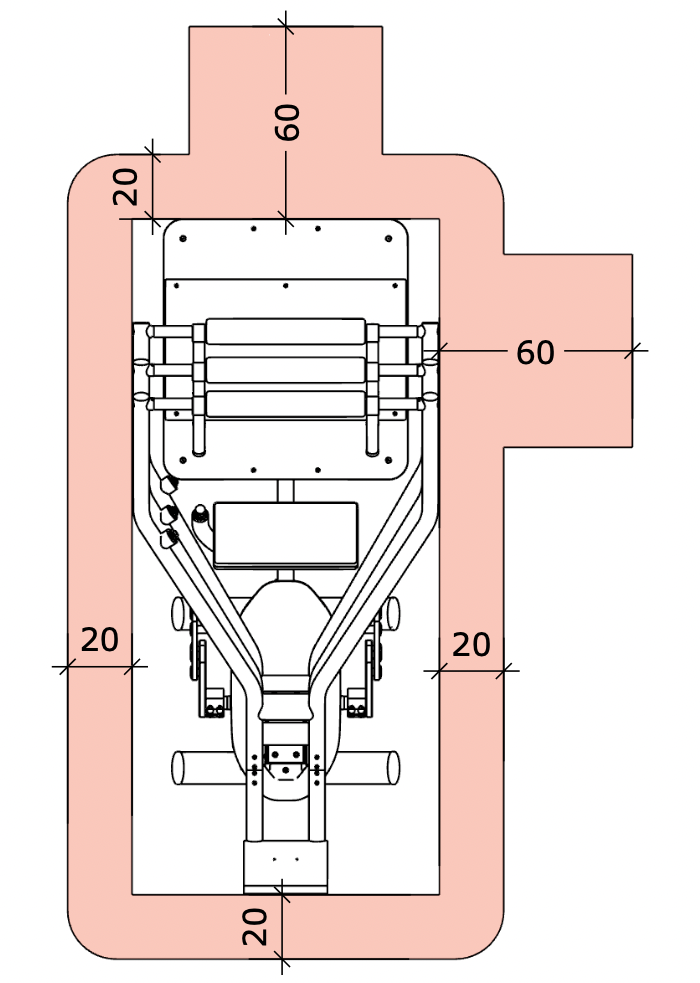

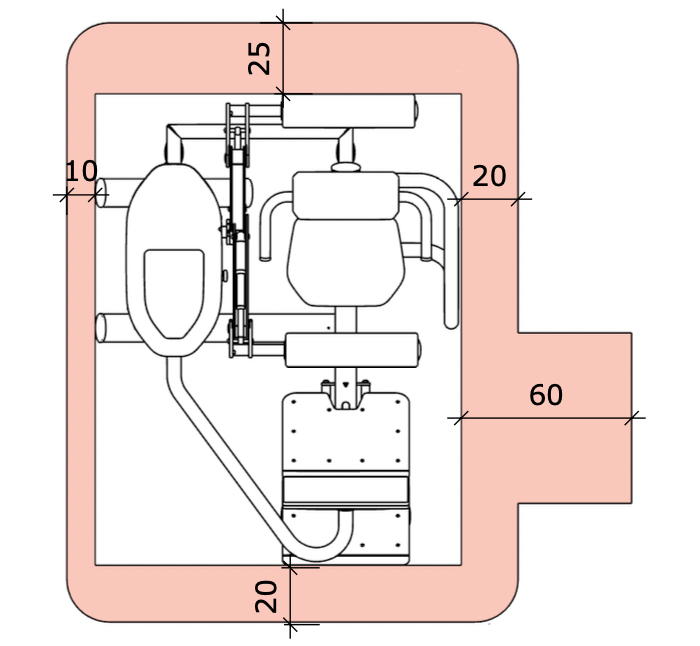

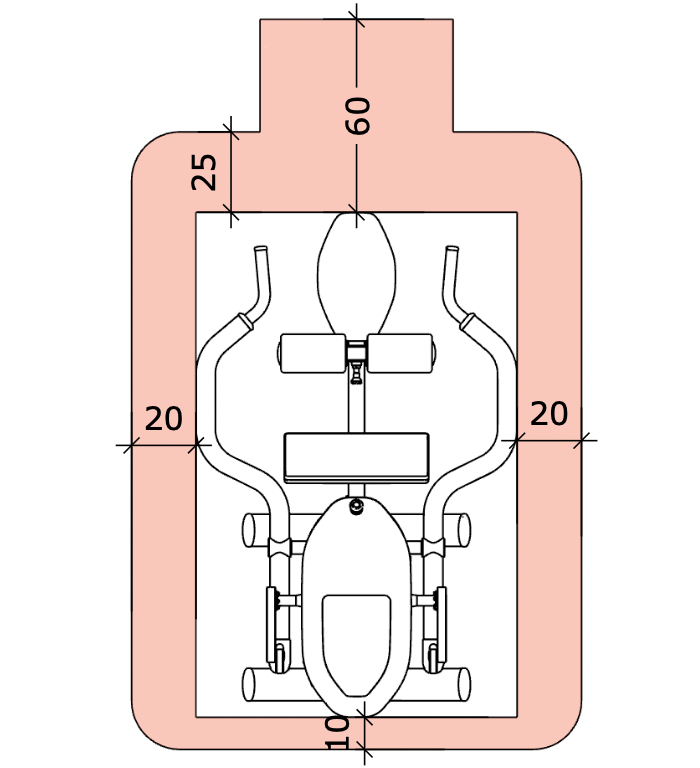

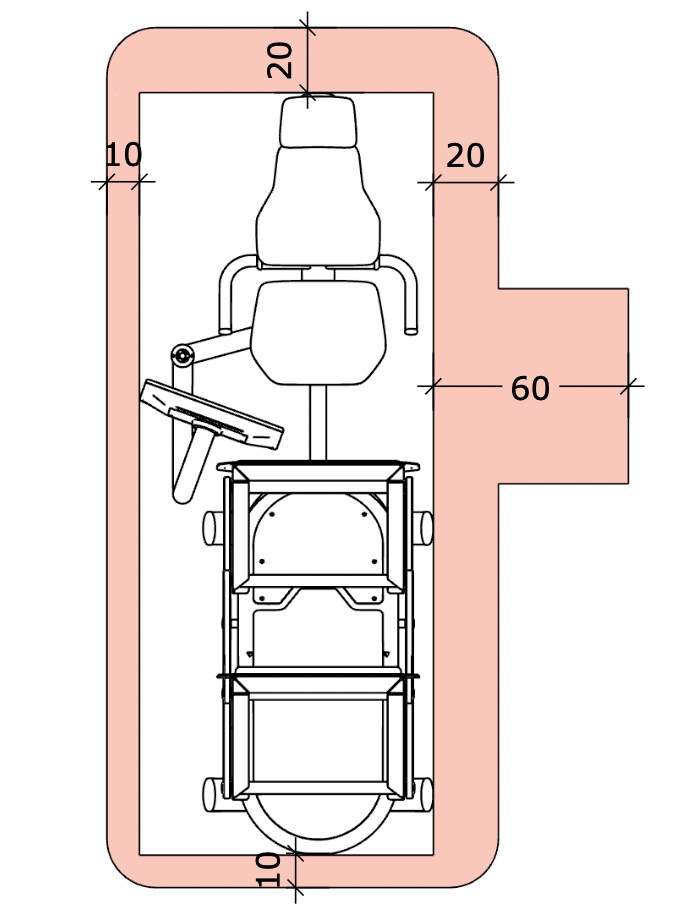

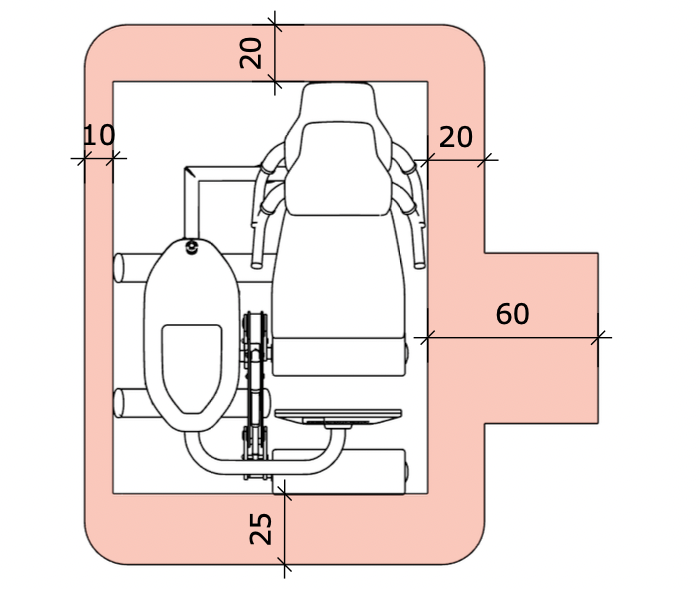

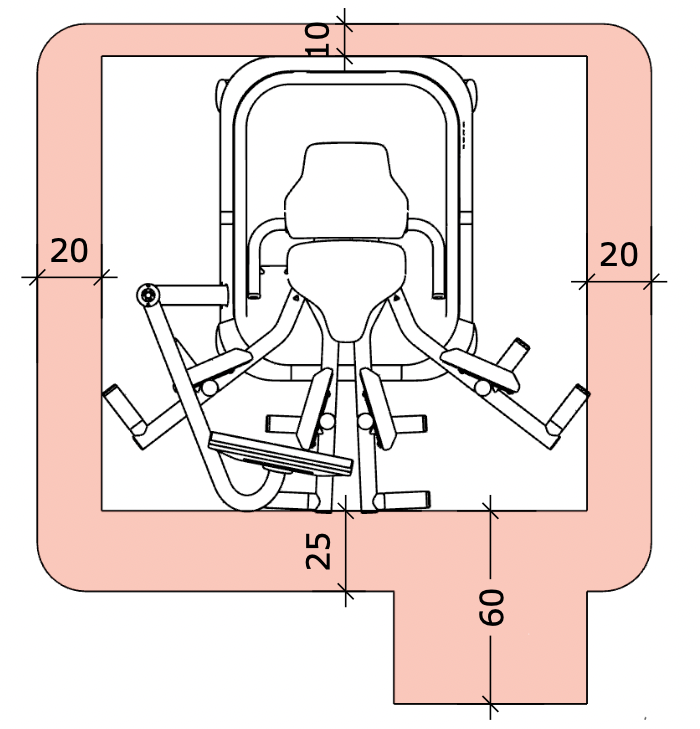

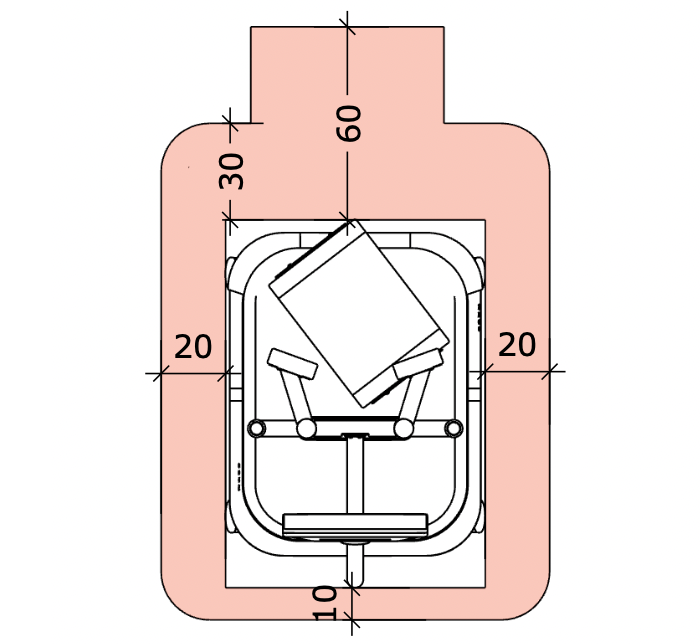

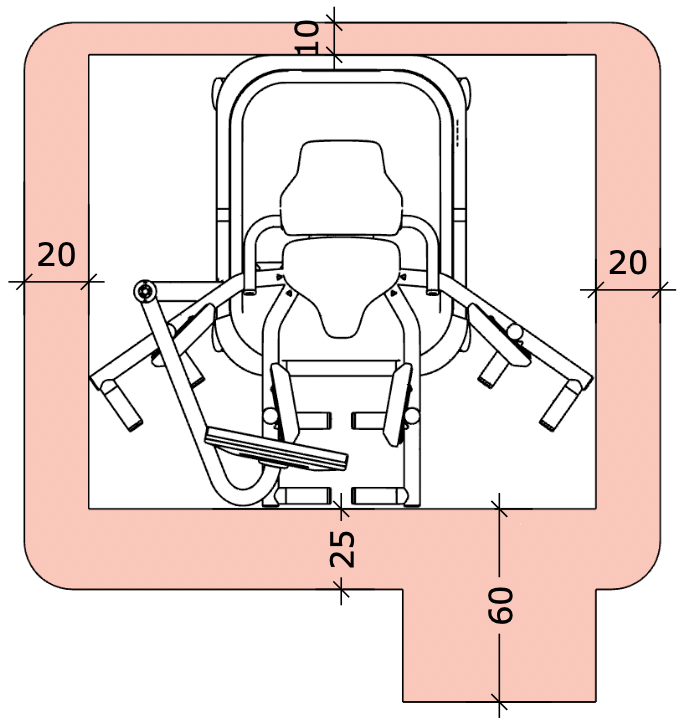

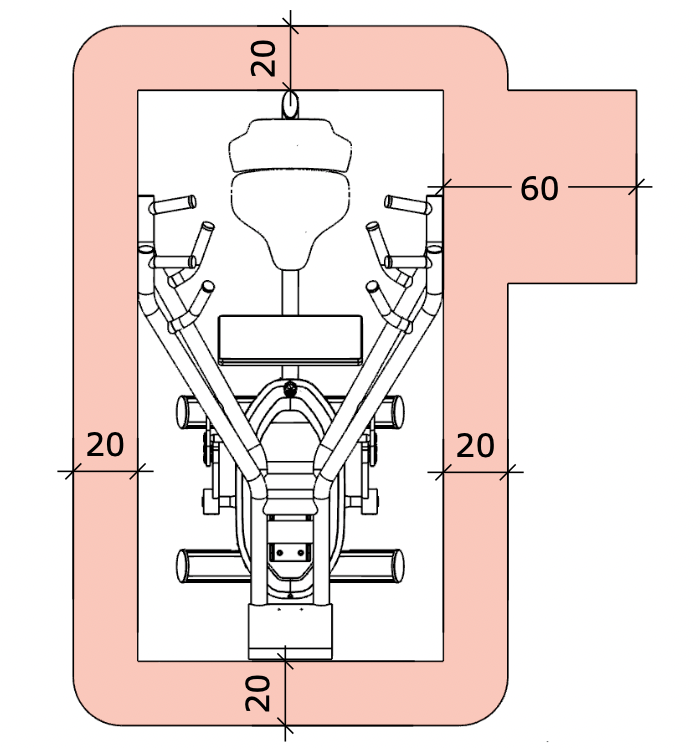

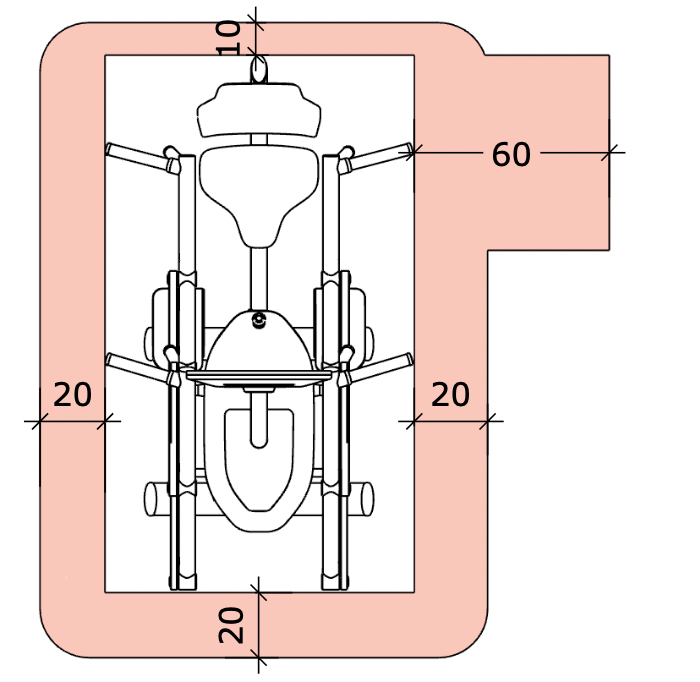

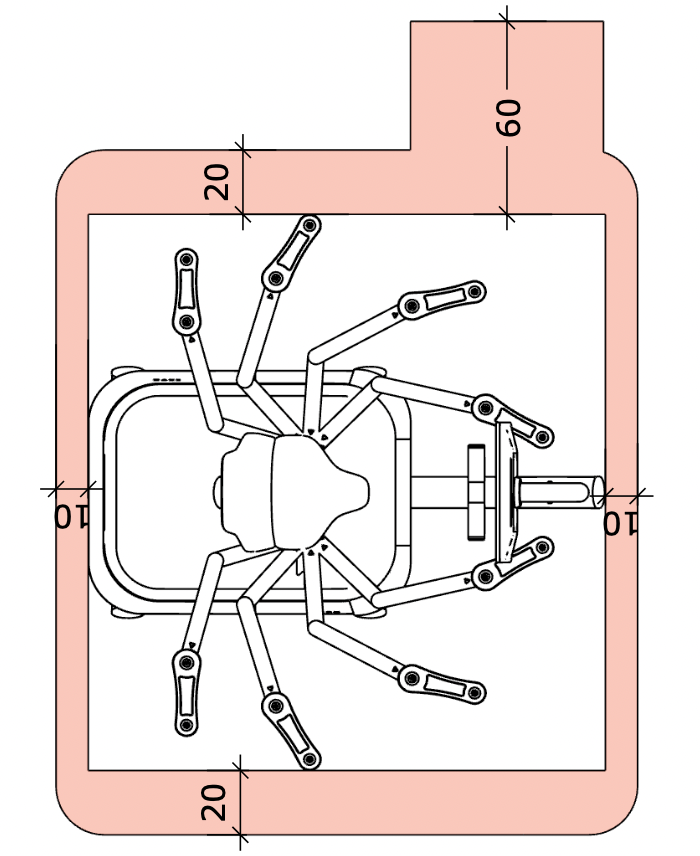

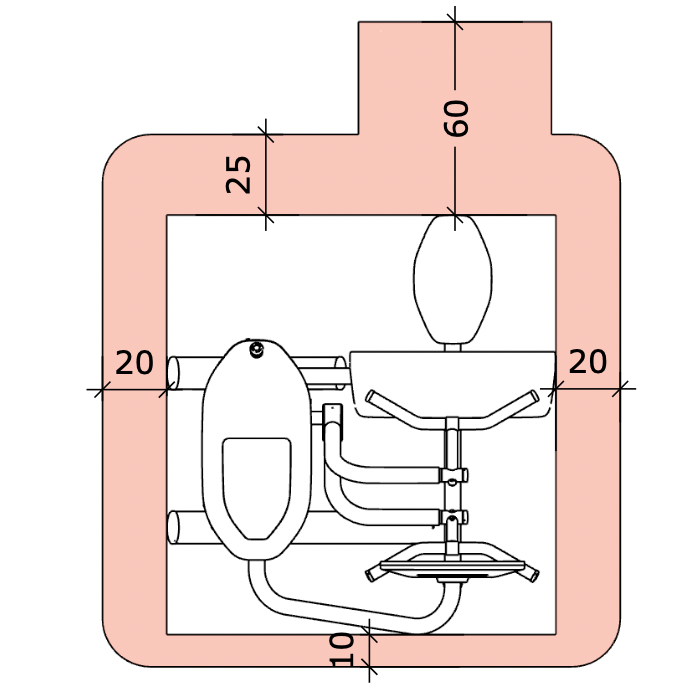

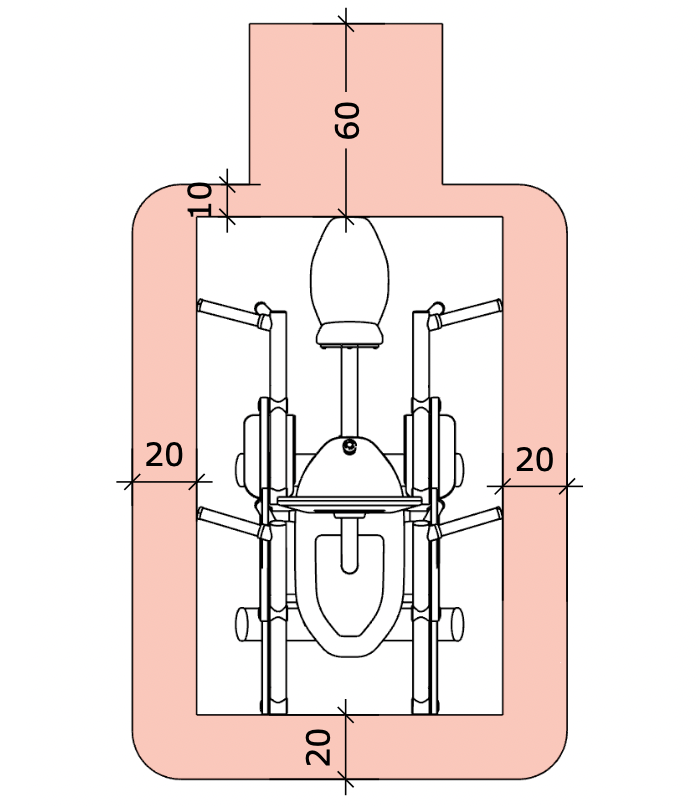

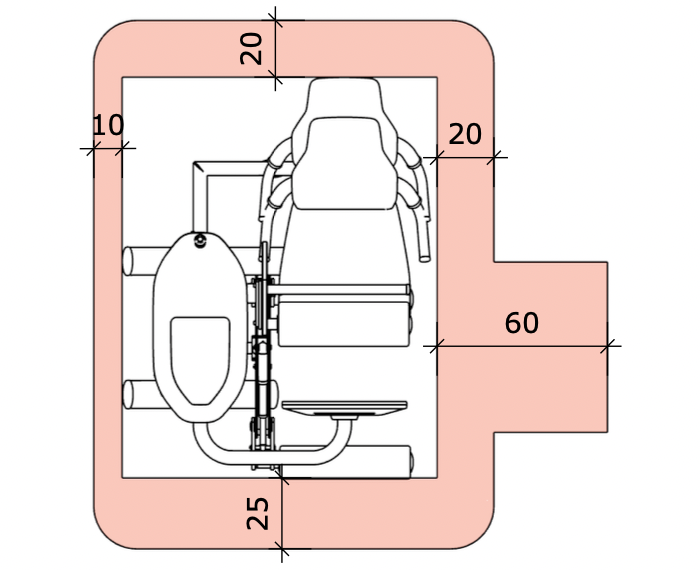

Recommended minimum space
Caution
An additional 60 cm of space is required to allow access to each machine. This space can be shared between machines.
M1 Leg Extension |
M2 Abdominal Crunch | ||
M3 Back Extension |
M4 Leg Curl | ||
M5 Chest Press |
M6 Seated Row | ||
M7 Lat Pull |
M9 Leg Press | ||
M10 Abductor |
M11 Adductor | ||
M12 Rotary Torso |
M13 Butterfly | ||
M14 Butterfly Reverse |
M15 Bicep Curl | ||
M17 Shoulder Press |
M18 Triceps | ||
M19 Hip Thrust |
M20 Squat |
Electrical hazards
Keep food and beverages away from the EGYM machines. If liquid enters a machine, unplug the power plug immediately and contact support.
Keep heat sources and sharp objects away from EGYM machines and power cables.
Keep air openings and the textile covering free of any obstructions.
Each machine must be connected directly to a separate power outlet. Extension cables or multi-distribution sockets are not permitted.
Ensure that the power cord is not knotted or twisted, cannot be stood on or tripped over, and is not trapped under any objects.
Use grounded cables and sockets.
Ensure that the sum of rated currents does not exceed the nominal rating of your OCPD (overcurrent protection device).
Power requirements
Note
The leakage current of EGYM machines is < 3.5 mA (all regions).
Caution
* The M20 Squat can operate with different voltage configurations. The higher voltage configuration allows higher training weights. Before installing the machine with a high voltage outlet, check your machine’s configuration. The M20 voltage configuration may only be changed by an EGYM service technician.
Overcurrent Protection Devices (OCPD)
Caution
Machines per OCPD: the sum of rated currents must not exceed the nominal rating of your OCPD (overcurrent protection device).
Residual Current Circuit Breakers (RCCB)
Note
A Type B+ RCCB is not recommended; the high frequency sensitivity can trip the circuit breaker unnecessarily.
RCCB type / rating | Machines per leakage current detector (RCCB / GFCI) | |
|---|---|---|
Central Europe | Type A (AC and pulsing current- sensitive) RCCB (I∆N = 30mA) | Max. 4 Smart Strength machines (incl. M9) per RCCB (I∆n = 30mA) |
Denmark | Type A (AC and pulsing current- sensitive) RCCB (I∆N = 30mA) | Max. 4 Smart Strength machines (incl. M9) per RCCB (I∆n = 30mA) |
United Kingdom | Type A (AC and pulsing current- sensitive) RCCB (I∆N = 30mA) | Max. 4 Smart Strength machines (incl. M9) per RCCB (I∆n = 30mA) |
Australia | Type A (AC and pulsing current- sensitive) RCCB (I∆N = 30mA) | Max. 4 Smart Strength machines (incl. M9) per RCCB (I∆n = 30mA) |
North America (USA, Canada) | Type A (AC and pulsing current- sensitive) RCCB (I∆N = 30mA) | Each machine requires a separate Class A GFCI (ground fault circuit interrupter) outlet or circuit breaker. |
EGYM machines need reliable Internet access and should not share limited bandwidth with high-usage systems, such as guest Wi-Fi or streaming services. A separate Internet connection for EGYM machines is recommended, but not required.
Ensure sufficient bandwidth:
5 Mbit/s (download) per EGYM machine,
1 Mbit/s (upload) per EGYM machine, and
1-2 Mbit/s (download) per gym member, if movie or music streaming services are provided.
Note
Contact your internet service provider as soon as possible. An active internet connection is required for installation.
Activate a DHCP (Dynamic Host Configuration Protocol) server.
Set DHCP lease time to a maximum of 12 hours.
Exclude IP address ranges 10.9.x.x and 10.11.x.x in the DHCP server.
Ensure the IP address pool is large enough for 2x the number of planned machines (>100 recommended).
Note
EGYM recommends using a LAN connection.
Make sure there is a LAN port at each machine location, or
Route a CAT6 LAN cable to each machine with 3 m (10ft) excess length.
Note
Wi-Fi configuration is only available if you use an EGYM router. An EGYM technician can assist with the EGYM router installation.
Warning
Do not press factory reset button on the EGYM router; this disconnects machines from the network and removes configurations.
Connect the router to a designated power outlet.
Connect the router to the network via LAN cable.
Router position:
1.5 meters (5 ft) above the floor, not on the ground.
Within 15 meters (50 ft) of the machines, ideally with direct line of sight.
Away from sources of interference, such as as other Wi-Fi equipment, DECT telephones, loudspeakers, Bluetooth devices, microwaves, or electrical cardio equipment.
Away from large metallic items such as heaters or iron training weights.
Note
The transmission quality is strongly dependent on the location of the router.
EGYM recommends approximately 15 machines within a 15 m (50 ft) radius around the router. For EGYM machines more than 15 meters (50 ft) from the router, request a wireless access point and connect it to the EGYM router.
Incorrectly configured Firewalls could cause issues with the EGYM machines. Allow exceptions for the IP addresses and ports in the following table.
Description | Destination host | Protocol | Ports |
|---|---|---|---|
Training, updates, device status | 104.199.66.167 35.189.221.132 104.199.91.64 146.148.19.217 104.155.57.166 146.148.15.175 | TCP | All ports |
Remote maintenance | 35.198.87.78 212.114.251.94 192.158.31.31 | TCP and UDP | All ports |
Domain Name Service (DNS) | 8.8.8.8 8.8.4.4 | TCP and UDP | Port 53 |
Time synchronization (NTP) | NTP server | Enable access | |
Fitness Hub seca edition | 3.127.32.71 18.156.48.111 3.124.243.61 52.37.226.173 35.84.145.167 35.81.42.122 | TCP | All ports |
Login method
To log in to EGYM equipment, members need a user account (EGYM ID). To protect data privacy, each member should have their own account.
EGYM Series 3 machines support RFID login, NFC login, or both. The machines can display the supported login media and login guidance. The supported login media available in your gym can be configured in the EGYM Business Suite.
RFID chip (wristband or card)
We recommend using EGYM branded RFID (Radio Frequency Identification) wristbands.
RFID chips not provided by EGYM (e.g. MIFARE or LEGIC chips) must be verified by EGYM Order Management. Send 2 sample RFID chips to EGYM SE with a copy of the manufacturer data sheet at least 4 weeks before implementation.
EGYM machines support RFID login using the MIFARE standard. For LEGIC compatibility, a special RFID reader variant is required. Contact EGYM Order Management before delivery to ensure your login medium is supported.
NFC pass (smartphone)
NFC login can be used with Apple Wallet (VAS) and Google Smart Tap.
To enable NFC login, an NFC pass can be generated in the EGYM Branded Member App. If your gym uses a different NFC pass provider, contact EGYM Support.
Smart Strength Exercises
|
| ||
Primary muscles Quadriceps femoris |
Get ready
Sit with your glutes fully against the backrest. Adjust the backrest so your knee joint aligns with the machine’s rotational axis.
Position the roller pad just above your ankle.
Engage your core and lightly pull on the side handles for stability.
Note
Hold the side handles to prevent your glutes from lifting out of the seat.

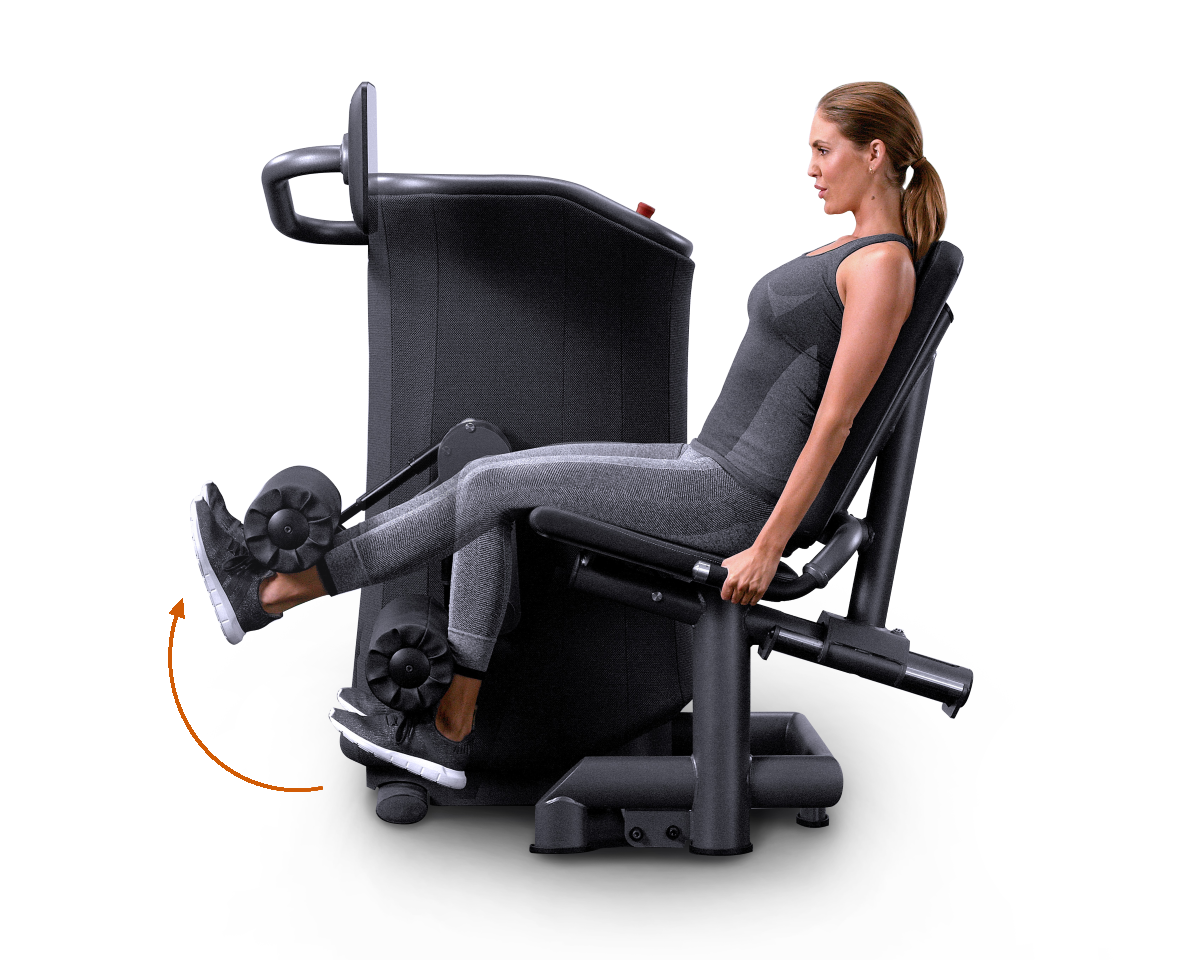

Start exercising
Start with your knees bent as far back as comfortably possible.
Note
If bending the knees is uncomfortable, begin at approximately a 90° knee angle.
Extend your knees against the resistance until your legs are straight.
Return to the starting position, keeping your legs parallel.
|
| ||

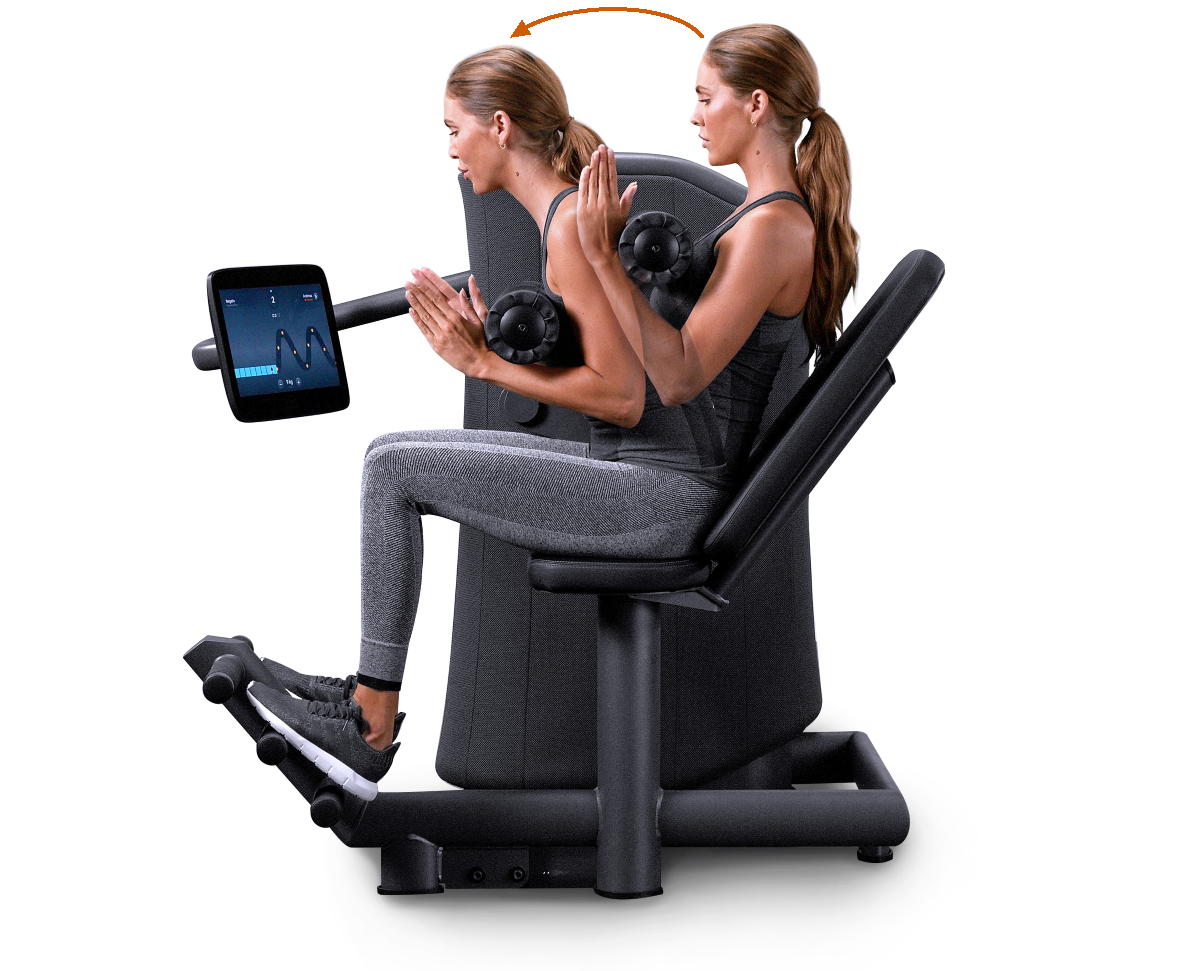

Primary muscles Rectus abdominis Obliquus externus Obliquus internus Transversus abdominis | |||
Secondary muscles Psoas major Psoas minor Iliac Pyramidal |
Get ready
Sit with your thighs approximately parallel to the floor.
Place your feet flat and ensure they are not wedged between the bars of the footrest.
Adjust the roller pad so it rests just below the shoulders.
Place your forearms against the roller pad. Your palms should face each other, with your thumbs pointed at you.
Start exercising
Begin with your upper body slightly flexed forward, keeping your hips stable and core engaged.
Bend your upper body forward and downward against the resistance, keeping your arms bent and in contact with the roller pad. Keep your head straight and in line with your back.
Return to the starting position in a controlled motion.
|
| ||
Primary muscles Erector spinae Gluteus maximus Hamstring |

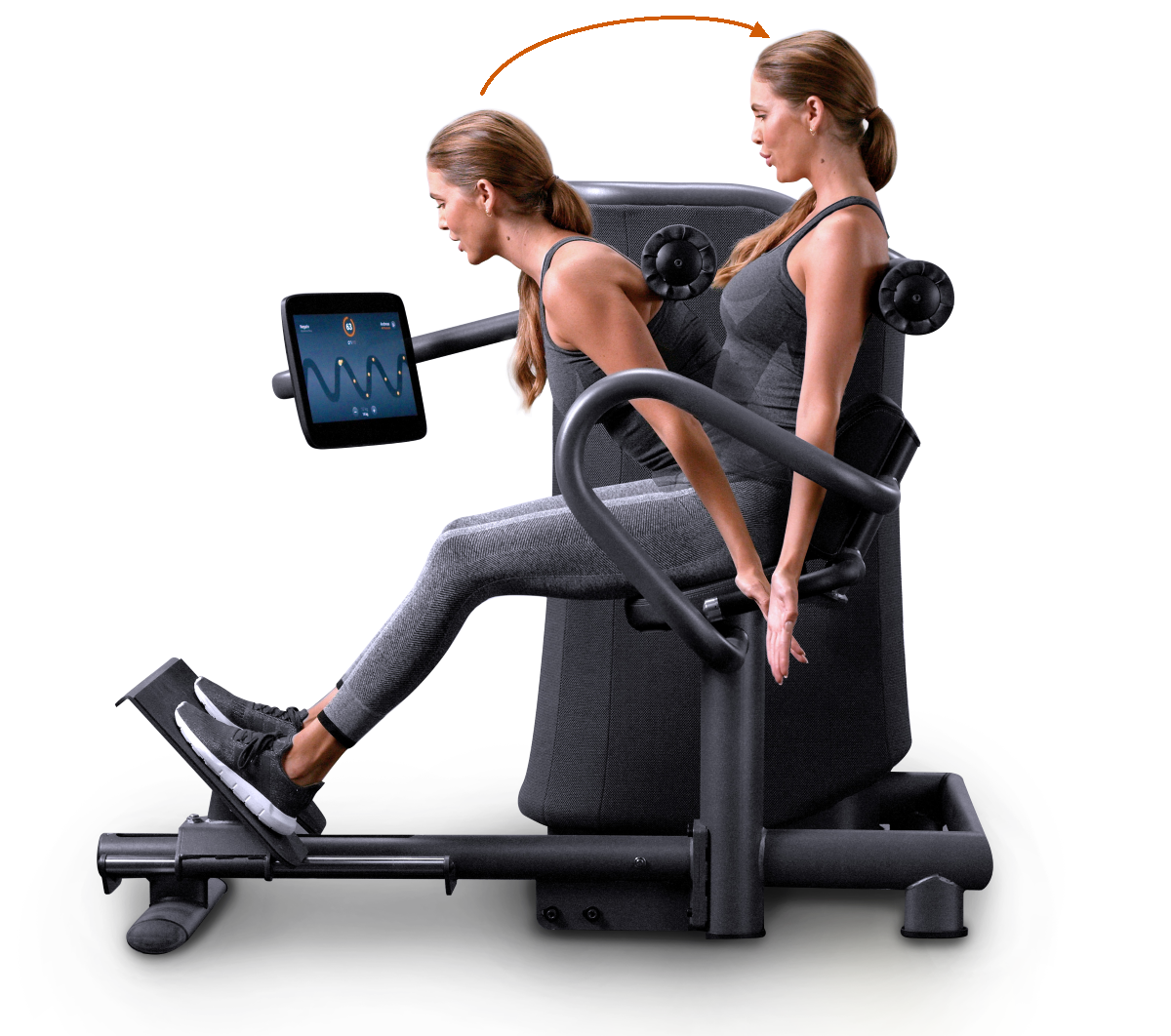

Get ready
Sit upright with your glutes fully against the backrest and lift your chest.
Engage your core.
Place your feet in the center of the footplate, with your knees slightly bent.
Adjust the back roller to the middle of the shoulder blades.
Hold the side handles for stability, especially during strength measurement.
Start exercising
Start with the upper body leaned forward, as far as possible without compensation.
Extend the upper body backward against the resistance until the torso is upright and supported by the backrest. Keep your back straight throughout the exercise.
Return to the flexed position in a controlled motion. Keep contact with the back roller throughout the exercise.
 |
| |
Primary muscles Hamstring | ||
Secondary muscles Gastrocnemius Popliteal |
Get ready
Sit with your glutes fully against the backrest. Adjust the backrest so the knee joint aligns with the machine’s rotational axis.
Position the lower roller pad between the calf and the Achilles tendon.
Secure the upper roller pad firmly on your thighs.
Hold the side handles for stability and engage your core.
Start exercising
Start with your legs extended and the knees slightly bent.
Bending at the knees, move your lower as far back as comfortable possible against the resistance. Keep your legs parallel and toes pointed upward.
Return to the starting position in a controlled motion.
 |
| |
Primary muscles Pectoral Triceps brachii Anterior deltoid | ||
Secondary muscles Anterior serratus Anconeus |
Get ready
Sit with your back straight against the backrest. Slide slightly forward so only your shoulders are in contact with the backrest.
Adjust the seat so the handles are positioned between chest and shoulder height.
Hold the handles, keeping the shoulders lowered.
Note
Grip variation
Neutral grip (palms facing each other): more activation of the triceps, and reduced strain on the shoulder joint.
Pronated grip (palms facing the floor): more activation of the pectoralis major.
Start exercising
Start with your elbows bent and the handles at chest height.
Extend your arms forward against the resistance until your arms are almost straight. Avoid locking your elbows.
Return to the starting position in a controlled motion.
 |
| |
Primary muscles Latissimus dorsi Middle trapezius Rhomboid Posterior deltoid | ||
Secondary muscles Triceps brachii Biceps Brachialis Brachioradialis |
Get ready
Sit upright with your chest against the chest pad, hips slightly behind your shoulders.
Adjust the seat height so your forearms are parallel to the floor when holding the handles.
Note
Grip variation
Neutral grip (palms facing each other): more activation of the latissimus dorsi and teres major, and reduced strain on the shoulder joint.
Pronated grip (palms facing the floor): more activation of the rear deltoids, middle traps, and rhomboids.
Start exercising
Start with your arms extended forward and the shoulders relaxed.
Pull the handles toward your body against the resistance. Pull your shoulder blades toward your spine and keep your shoulders lowered.
Return to the starting position in a controlled motion, keeping the upper body upright.
 |
| |
Primary muscles Latissimus dorsi Inferior trapezius Rhomboid Posterior deltoid Teres major | ||
Secondary muscles Triceps brachii Biceps Brachialis Brachioradial |
Get ready
Sit upright, as far forward as possible.
Adjust the pad so it rests firmly on your thighs.
Hold the handles, keeping your shoulders lowered.
Note
Grip variation
Neutral grip (palms facing each other): more activation of the lower lats and biceps, and reduced strain on the shoulder joint.
Pronated grip (palms facing the floor): more activation of the upper lats and teres major.
Start exercising
Start with your arms extended overhead.
Pull the bar downward against the resistance until it reaches approximately chin height, keeping your upper body upright and shoulders lowered.
Return to the starting position in a controlled motion.
 |
| |
Primary muscles Quadriceps femoris Hamstring Gluteus maximus Gastrocnemius Soleus | ||
Secondary muscles Erector spinae Medial compartment of thigh |
Get ready
Sit with your back fully against the backrest and your back straight.
Place your feet flat on the footplate, hip-width apart, with toes pointing slightly outward.
Hold the side handles for stability.
Adjust the footplate range so the knees are bent as far as possible without compensation in the starting position and slightly bent (not locked) in the extended position.
Start exercising
Start with your knees bent, keeping the hips and back in contact with the backrest.
Extend your legs against the resistance until your legs are almost straight. Keep your knees aligned with your feet throughout the movement.
Caution
Do not lock your knees.
Return to the bent position in a controlled motion.
 |
| |
Primary muscles Gluteus medius Gluteus minimus | ||
Secondary muscles Gluteus maximus Tensor fasciae latae |
Get ready
Sit with your glutes against the backrest and your back straight.
Note
Seat variation
Sit upright with your feet on the footrest closest to your body.
Sit against the backrest with your feet on the further footrest.
Place your feet on the footrests and position the outside of your thighs or knees against the pads.
Hold the side handles for stability.
Start exercising
Start with your legs close together.
Press your legs outward against the resistance until a comfortable stretch is felt in your hips.
Return to the starting position in a controlled motion.
 |
| |
Primary muscles Medial compartment of thigh |
Get ready
Sit with your glutes against the backrest.
Note
Seat variation
Sit upright with your feet on the footrest closest to your body.
Sit against the backrest with your feet on the further footrest.
Place your feet on the footrests and position your inner thighs or knees against the pads.
Hold the side handles for stability.
Start exercising
Start with your legs open until a comfortable stretch is felt in your inner thighs.
Press the knee pads inward against the resistance until your legs are close together. Keep your upper body stable throughout the movement.
Return to the starting position in a controlled motion.
 |
| |
Primary muscles Obliquus internus abdominis Obliquus externus abdominis | ||
Secondary muscles Latissimus dorsi Erector spinae |

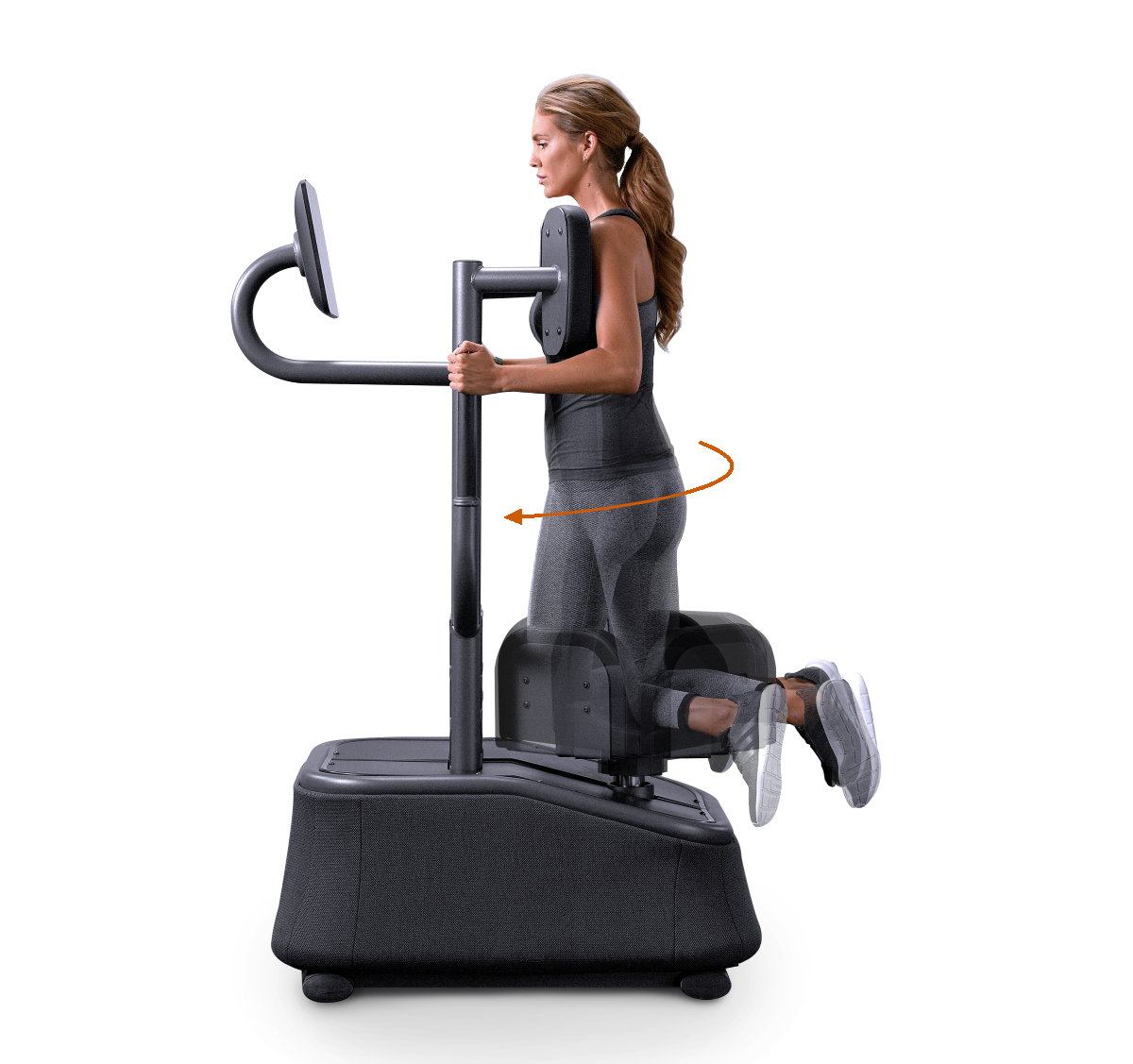

Get ready
Kneel in the machine with your knees placed slightly past the front edge of the pad.
Keep your upper body upright; align your knees, hips, and shoulders.
Hold the vertical handles.
Press your shoulders firmly against the side pads.
Start exercising
Start in a neutral position with your lower body aligned with your upper body.
Rotate the lower body to the right against the resistance, keeping your upper body stable and a firm grip on the handles.
Return to the starting position in a controlled motion.
Repeat the exercise rotating to the left.
 |
| |
Primary muscles Pectoralis major Pectoralis minor Deltoid | ||
Secondary muscles Biceps brachii Coracobrachialis |
Get ready
Sit with your back straight against the backrest.
Hold the handles between chest and shoulder height. Keep your elbows slightly bent.
Start exercising
Start with your arms open to the sides until light tension is felt in the chest.
Bring the handles together against the resistance. Keep your shoulders lowered and elbows slightly bent.
Return to the starting position in a controlled motion.
 |
| |

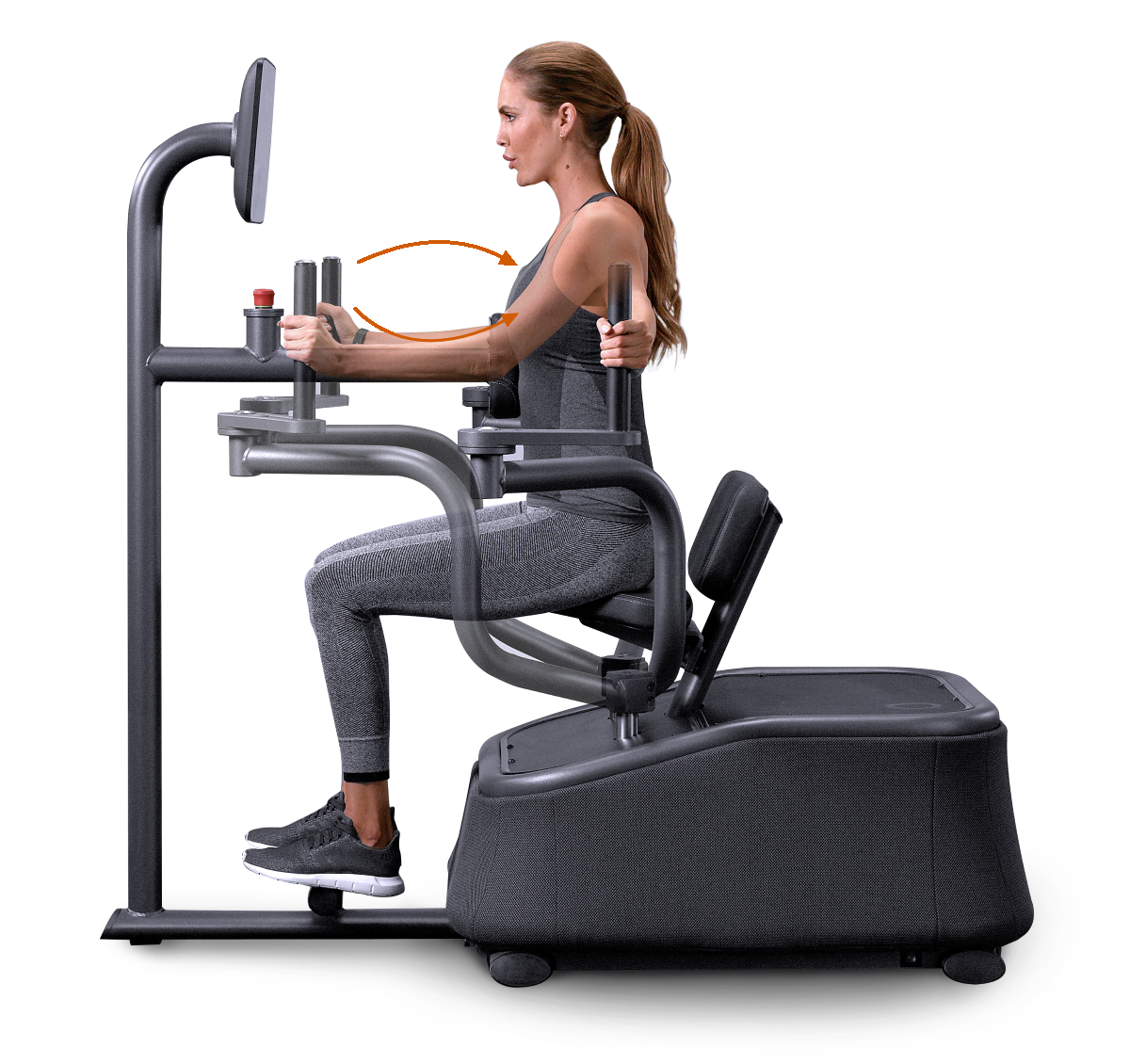

Primary muscles Middle trapezius Rhomboid | ||
Secondary muscles Posterior deltoid Triceps brachii |
Get ready
Sit upright and forward with your chest against the chest pad, not with your glutes against the backrest.
Hold the handles slightly below shoulder height with your elbows slightly bent.
Start exercising
Start with the handles close together in front of the body.
Open your arms outward and backward against the resistance until the handles are in line with the shoulders. Keep your shoulders lowered and elbows slightly bent.
Return to the starting position in a controlled motion.
 |
| |

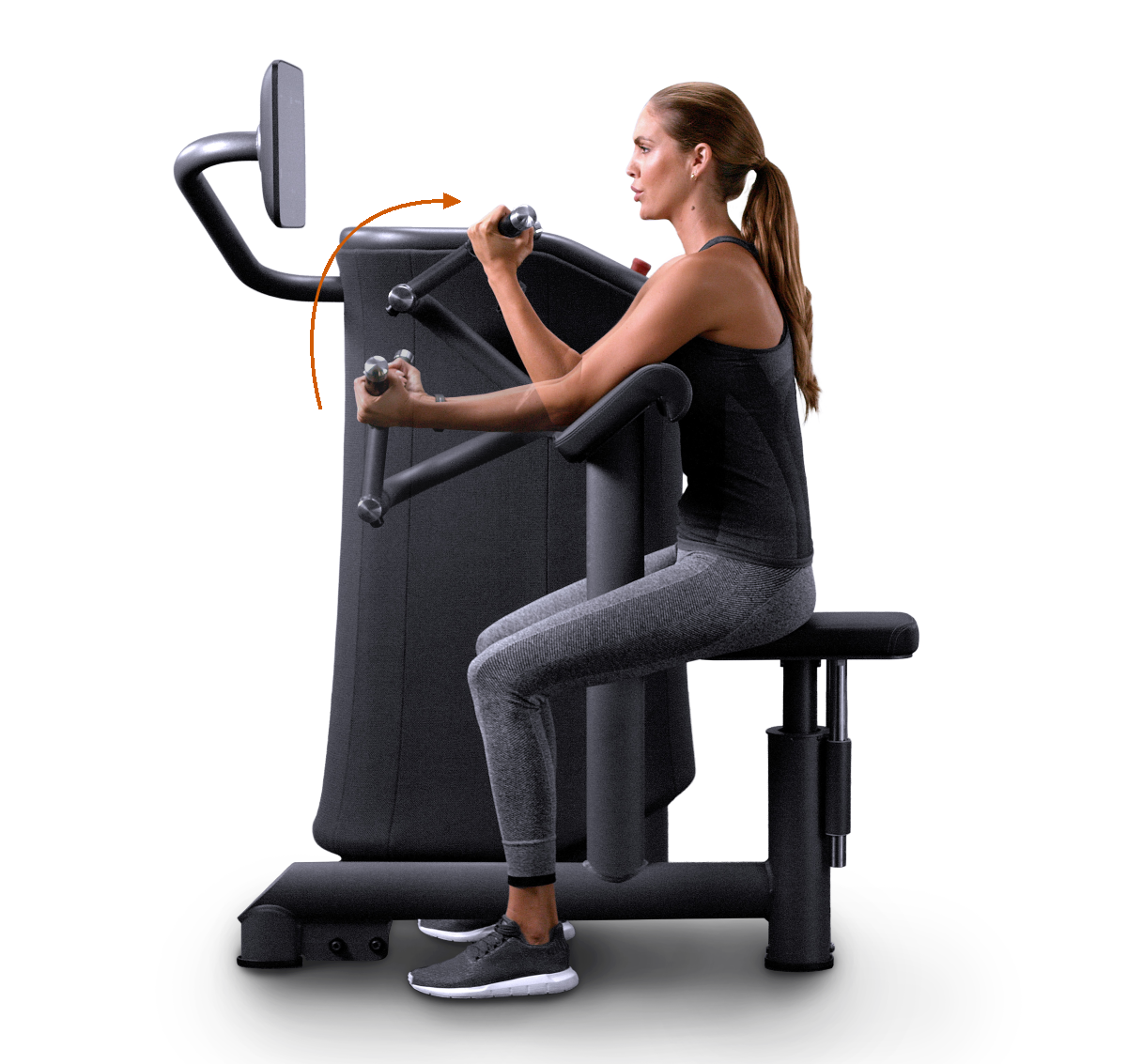

Primary muscles Biceps Brachialis | ||
Secondary muscles Brachioradialis |
Get ready
Sit on the seat and lean your upper body forward so your upper arms rest on the pad. Adjust the seat so the arm pad is at armpit height.
Position your elbows in line with the machine’s pivot point.
Hold the bar with an underhand grip.
Note
Grip variation
Wide underhand grip: works the biceps short head muscle
Narrow underhand grip: works the biceps long head muscle
Start exercising
Start with your arms extended, with your elbows slightly bent.
Bend your arms upward against the resistance as far as comfortably possible. Keep your arms against the pad and your shoulders lowered.
Return to the starting position in a controlled motion.
 |
| |

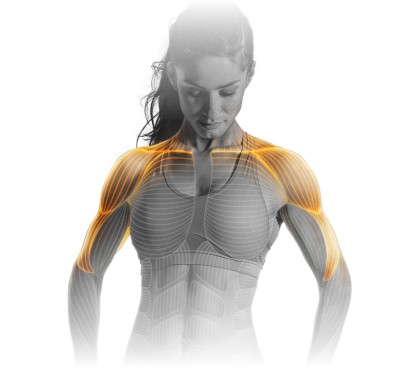

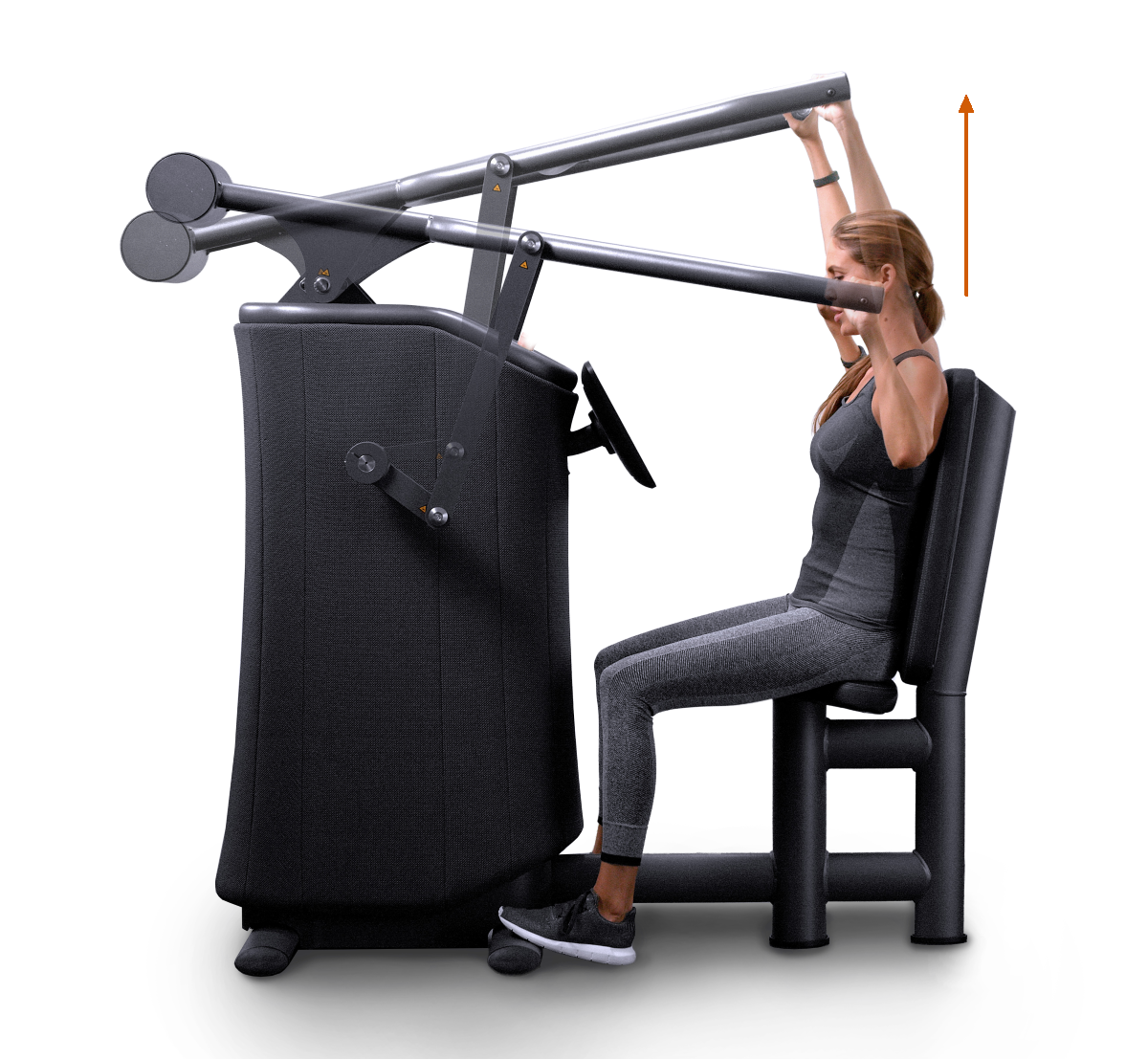

Primary muscles Lateral deltoid Triceps brachii Superior trapezius | ||
Secondary muscles Anconeus Rotator cuff muscles Serratus anterior Upper & lower trapezius |
Get ready
Sit with your back straight against the backrest.
Hold the handles with your elbows bent.
Note
Grip variation
Neutral grip (palms facing each other): more activation of the lateral deltoid and triceps, and reduced strain on the shoulder joint.
Pronated grip (palms facing the floor): more activation of the anterior deltoid and upper pectorals.
Start exercising
Start with the handles at eye level.
Press the handles upward against the resistance until your arms are almost straight. Keep your shoulders lowered and avoid locking your elbows.
Return to the starting position in a controlled motion.
 |
| |

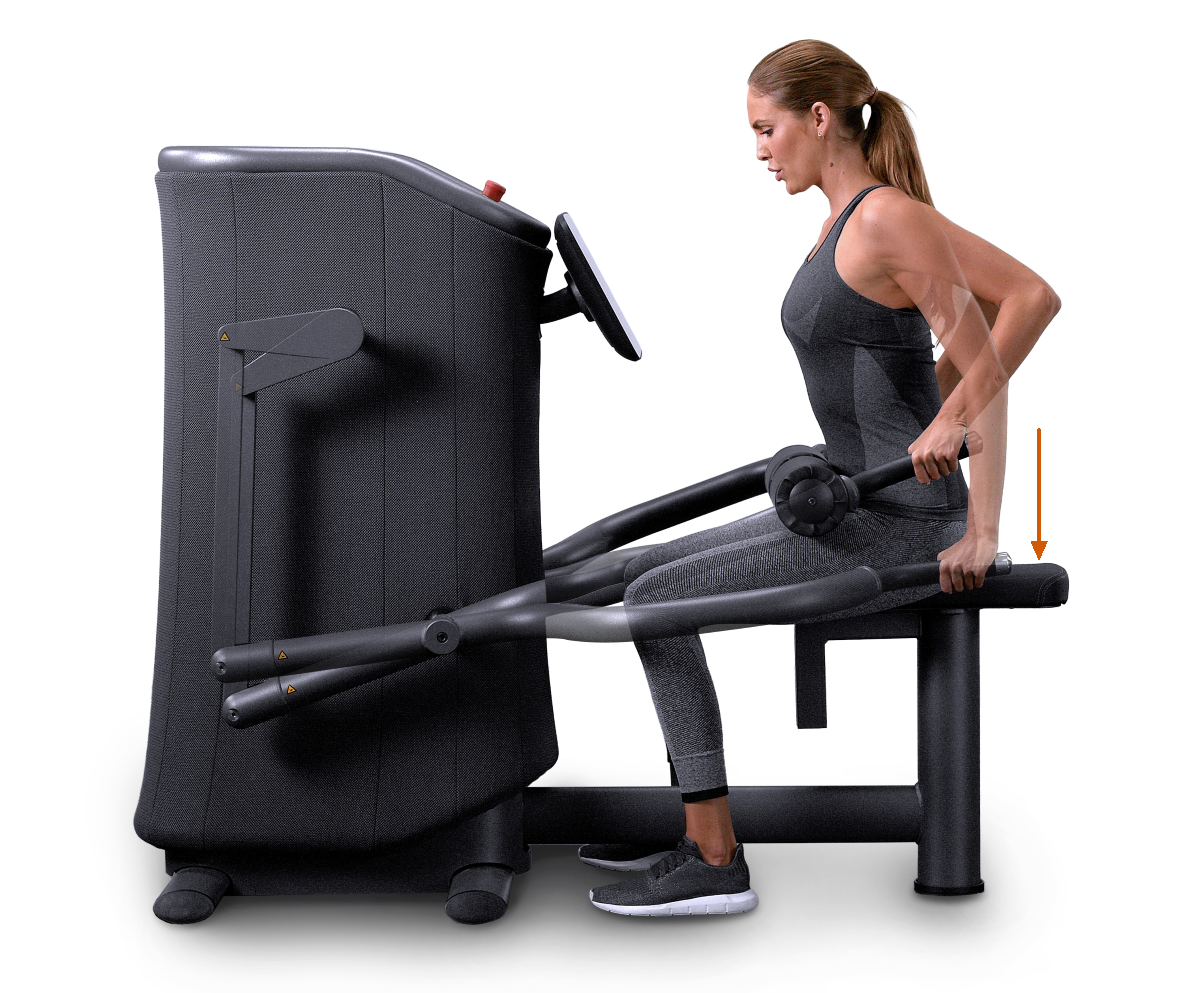

Primary muscles Triceps brachii | ||
Secondary muscles Anconeus Anterior deltoid Pectoralis major |
Get ready
Sit as far forward as possible on the seat.
Adjust the thigh pad so it rests firmly on your thighs.
Lean your upper body slightly forward while keeping your back straight.
Start exercising
Start with your elbows bent at approximately a right angle.
Extend your arms downward against the resistance. Stop when your elbows are slightly bent.
Caution
Do not lock your elbows.
Return to the starting position in a controlled motion, keeping your shoulders lowered and upper body stable.
 |
| |
Primary muscles Gluteus maximus Hamstring | ||
Secondary muscles Erector spinae Musculus rectus abdominis Musculus gastrocnemius |
Get ready
Place your feet on the footplate with your heels against the raised edge and your toes pointed slightly outward.
Position the hip bones against the pad. Your glutes should not be touching the seat.
Position your upper back so your shoulder blades make contact with the backrest.
Hold the side handles for stability.
Start exercising
Start with your hips against the pad and keep your core engaged.
Drive your hips upward against the resistance until your body forms a straight line from shoulders to hips.
Lower your hips back to the starting position in a controlled motion.
 |
| |
Primary muscles Quadriceps Gluteus maximus | ||
Secondary muscles Hamstring Erector spinae | ||
Tertiary muscles Muscles of the core Gastrocnemius |
Caution
Use caution when stepping on or off the platform to prevent tripping.
Get ready
Step carefully onto the platform.
Position yourself under the bar with your feet shoulder-width apart and toes pointing slightly outward.
Rest the bar on your shoulders and squeeze your shoulder blades together.
Engage the core and keep your chest lifted.
Start exercising
Start from an upright standing position with your core engaged.
Lower your body by pushing the hips down and back while keeping your knees aligned with your feet.
Push through your feet to extend the hips and knees and return to the upright position. Keep your core engaged and back straight.
Caution
To safely stop training from any position, press the Easy-Stop button on the right side of the bar.
- Maximum training weight
The maximum weight a user can select for training.
- Maximum strength value
The maximum strength possible during a strength test.
EGYM machine | Maximum training weight | Maximum strength value | |
|---|---|---|---|
M1 | Leg Extension | 175 kg (386 lbs.) | 230 kg (508 lbs.) |
M2 | Abdominal Crunch | 100 kg (221 lbs.) | 150 kg (331 lbs.) |
M3 | Back Extension | 125 kg (276 lbs.) | 200 kg (441 lbs.) |
M4 | Leg Curl | 120 kg (265 lbs.) | 175 kg (386 lbs.) |
M5 | Chest Press | 165 kg (364 lbs.) | 220 kg (486 lbs.) |
M6 | Seated Row | 165 kg (364 lbs.) | 220 kg (486 lbs.) |
M7 | Lat Pull | 165 kg (364 lbs.) | 220 kg (486 lbs.) |
M8 | Gluteus | 100 kg (221 lbs.) | 150 kg (331 lbs.) |
M9 | Leg Press | 260 kg (574 lbs.) | 375 kg (827 lbs.) |
M10 | Abductor | 150 kg (331 lbs.) | 200 kg (441 lbs.) |
M11 | Adductor | 150 kg (331 lbs.) | 200 kg (441 lbs.) |
M12 | Rotary Torso | 100 kg (221 lbs.) | 130 kg (287 lbs.) |
M13 | Butterfly | 100 kg (221 lbs.) | 140 kg (309 lbs.) |
M14 | Butterfly Reverse | 100 kg (221 lbs.) | 120 kg (265 lbs.) |
M15 | Bicep Curl | 100 kg (221 lbs.) | 120 kg (265 lbs.) |
M16 | Calf Press | 180 kg (397 lbs.) | 240 kg (530 lbs.) |
M17 | Shoulder Press | 150 kg (331 lbs.) | 200 kg (441 lbs.) |
M18 | Triceps | 200 kg (441 lbs.) | 250 kg (552 lbs.) |
M19 | Hip Thrust | 250 kg (551 lbs.) | 300 kg (661 lbs.) |
M20 | Squat | 220 kg (470 lbs.) at 230 / 240V * 150 kg (330 lbs.) at 100V / 110V | 235 kg (518 lbs.) at 230 / 240V * 150 kg (330 lbs.) at 100V / 110V |
Caution
* The M20 Squat can operate with different voltage configurations. The higher voltage configuration allows higher training weights. Before installing the machine with a high voltage outlet, check your machine’s configuration. The M20 voltage configuration may only be changed by an EGYM service technician.
Training modes and methods
- EGYM Circuit mode
Machines are synchronized and members use the machines in a defined sequence.
- EGYM Pro mode
Machines function independently, and members can train at their own pace and choose the training weight and exercise.
Regular
| Constant resistance, as in classic strength training. Benefits: Simple and easy to follow Target group: Beginners |

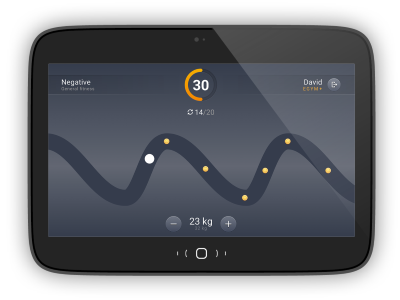

Negative
| Higher resistance in the eccentric phase than the concentric phase. Benefits: Improves strength and prevents injury, and lowers blood pressure and heart rate compared to regular training. Target group: Athletes, advanced users, users with high blood pressure |

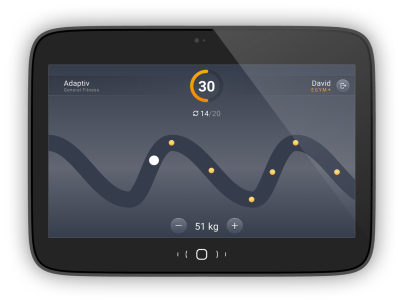

Adaptive
| Resistance is reduced during exercise, depending on the remaining muscle action potential. Benefits: Stimulates muscle growth through increased muscle fatigue. Target group: People who tend to have a slim body shape (ectomorph), body builders |

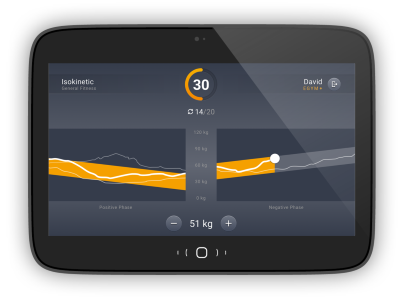

Isokinetic *
| * not available in all markets The energy spent by the user creates equal resistance from the equipment. Benefits: Training at the natural strength limit in every angular movement Target group: Users who have been diagnosed with diabetes, orthopedic problems, or cancer |

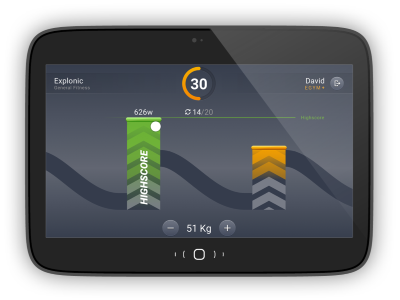

Explonic
| Constant weight with maximum acceleration. Benefits: Builds power and physical performance, and increases strength. Target group: Athletes, older adults, health-conscious people |
Machine maintenance
- Daily
Check machines and cables for physical damage.
Ensure safe operation.
Clean the machines.
- Weekly
Reboot machines by switching them off overnight.
- Monthly
Check for abnormal sound (any sound that exceeds a sound level pressure of 80 dB(A) measured at a 1-meter distance). If this occurs, contact EGYM Support.
Caution
Do not oil or lubricate the machines.
Caution
Repairs should only be carried out by qualified EGYM service technicians. This includes the replacement of wear parts.
Caution
Electrical components should only be replaced with original parts. EGYM cannot guarantee the safety and quality of machines if they have been modified.
Recurrent electrical testing is required in accordance with EN 50699 (DIN VDE 0701-0702) and DGUV V3, depending on the region.
When testing, wait until the machine has fully booted before switching it off again.
EGYM recommends cleaning the machines daily, using the following products from DR. SCHNELL GmbH (www.dr-schnell.com). If these products are not available in your region, use a comparable product.
Caution
Do not apply cleaning agents directly to the monitor. Ensure the monitor is dried after cleaning. Moisture on the monitor will affect its function.
Caution
EGYM machines must be switched off before being cleaned.
Caution
Do not use a vacuum to clean the machine. For heavy soiling, contact EGYM Support or your distributor.
Surface | Product | Cleaning instruction |
|---|---|---|
Upholstery Metal surfaces Display Rubber grips | FOROL | Fill the FOROL hand sprayer with 600 ml of cold water, attach the FOROL cartridge and screw into place. Spray the product solution onto a soft cloth and wipe the surfaces. |
Upholstery | NOVO PEN-OFF | For heavy soiling, spray NOVO PEN-OFF onto a dry cloth and work it into the surface of the upholstery. Wipe with a clean cloth dampened with water. |
Textile covering | NOVO PEN-OFF | For heavy soiling, spray NOVO PEN-OFF onto a dry microfiber cloth (not directly onto the textile covering) and treat the surface. Finish with a clean dry cloth; the fabric must be dry after cleaning. |
EGYM does not provide validated product recommendations for all regions. Follow the guidelines to optimize the lifetime of your EGYM equipment:
 |

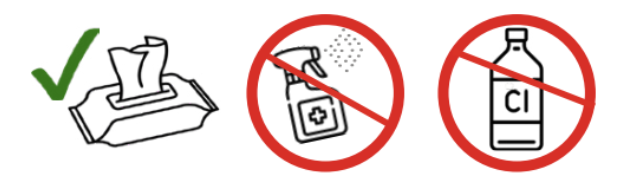

Always use a cloth when cleaning the equipment using spray; never spray cleaning products directly onto the machines.
Do not use disinfectants containing chlorine as they cause severe corrosion.
Do not use highly concentrated alcohols (over 45%).
EGYM recommends using disinfectant wipes to prevent liquid from entering the machines.
Note
If disinfectant products leave a residue on the screen, clean with a damp cloth (use water) to remove residue and ensure proper function.
Disassembly and storage
Disassembly of the EGYM machines must be performed by an EGYM service technician or a person authorized by EGYM.
If storage of the machines is required, please contact EGYM Support.
If a machine will not be used for an extended period, use a cover to protect the mechanical parts of the machine from dust.
Disposal
EGYM machines may not be disposed of with household waste. Machines must be taken to a suitable collection point for the environmentally responsible disposal of electronic waste.
If you have agreed to return used machines to EGYM, arrangements can be made with the EGYM Order Management team.
Compliance information
The full declarations of conformity are available online at https://knowledge.egym.com/en/smart-strength/smart-strength-compliance-documentation.
EU declaration of conformity
Hereby, EGYM SE declares that the EGYM machines are in compliance with:
Machinery Directive 2006/42/EC
Electromagnetic Compatibility Directive 2014/30/EU
Low Voltage Directive 2005/95/EC
Restriction of Hazardous Substances Directive 2011/65/EU
Radio Equipment Directive, 2014/53/EU
FCC compliance
This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Support
When contacting EGYM Support or your distributor, please provide the following information. Some of this information can be found on the machine type plate.
Gym name and ID
Serial number and product name
Contact person and their contact details
Detailed description of the problem:
When the problem occurs (e.g. during training, after switching the machine on)
Any error messages and when the error messages display
User accounts (email addresses) that are affected
Was the machine restarted?
Note
Switch the machine off, wait approximately one minute, and switch the machine on again.
